HOME >> Energy Storage Battery >> 12V LiFePO4 Battery >> High-Capacity 12V 170Ah LiFePO4 RV Battery Pack with LED
  • High-Capacity 12V 170Ah LiFePO4 RV Battery Pack with LED
    High-Capacity 12V 170Ah LiFePO4 RV Battery Pack with LED
    High-Capacity 12V 170Ah LiFePO4 RV Battery Pack with LED
    High-Capacity 12V 170Ah LiFePO4 RV Battery Pack with LED
    High-Capacity 12V 170Ah LiFePO4 RV Battery Pack with LED
    High-Capacity 12V 170Ah LiFePO4 RV Battery Pack with LED
    High-Capacity 12V 170Ah LiFePO4 RV Battery Pack with LED
    ❤ Add to collection

  • High-Capacity 12V 170Ah LiFePO4 RV Battery Pack with LED

    The YABO 12V 170Ah LiFePO4 battery is a high-performance lithium iron phosphate battery designed for Minn Kota trolling motors, RVs, solar power systems, and marine applications. Lightweight, durable, and long-lasting, it features an integrated Battery Management System (BMS) for enhanced safety.
    • ￥0.00
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
    • Consultation
Description
The YABO 12V 170Ah LiFePO4 battery is a high-performance lithium iron phosphate battery designed for Minn Kota trolling motors, RVs, solar power systems, and marine applications. Lightweight, durable, and long-lasting, it features an integrated Battery Management System (BMS) for enhanced safety.

High-Capacity 12V 170Ah LiFePO4 RV Battery Pack  with LED

Product Features:

Electrical
Characteristics

Nominal Voltage

12.8V

Nominal Capacity

170Ah@0.2C

Energy

2176Wh

Internal Resistance

≤50mΩ

Cycle Life

2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity

Self Discharge

≤3.5% per month at 25℃

Standard Charging

Max.Charging Voltage

14.0~14.6V

Charging Mode

At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C

Charging Current

100A

Max.Charging Current

100A

Standard Discharging

Discharging Current

150A

Max. Continuous Current

150A

Max.Pulse Current

300A(<3S）

Discharging Cut-off Voltage

10.0

Operating Condition

Charge Temperature

0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Discharge Temperature

-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity

Storage Temperature

0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

Water Dust Resistance

IP55

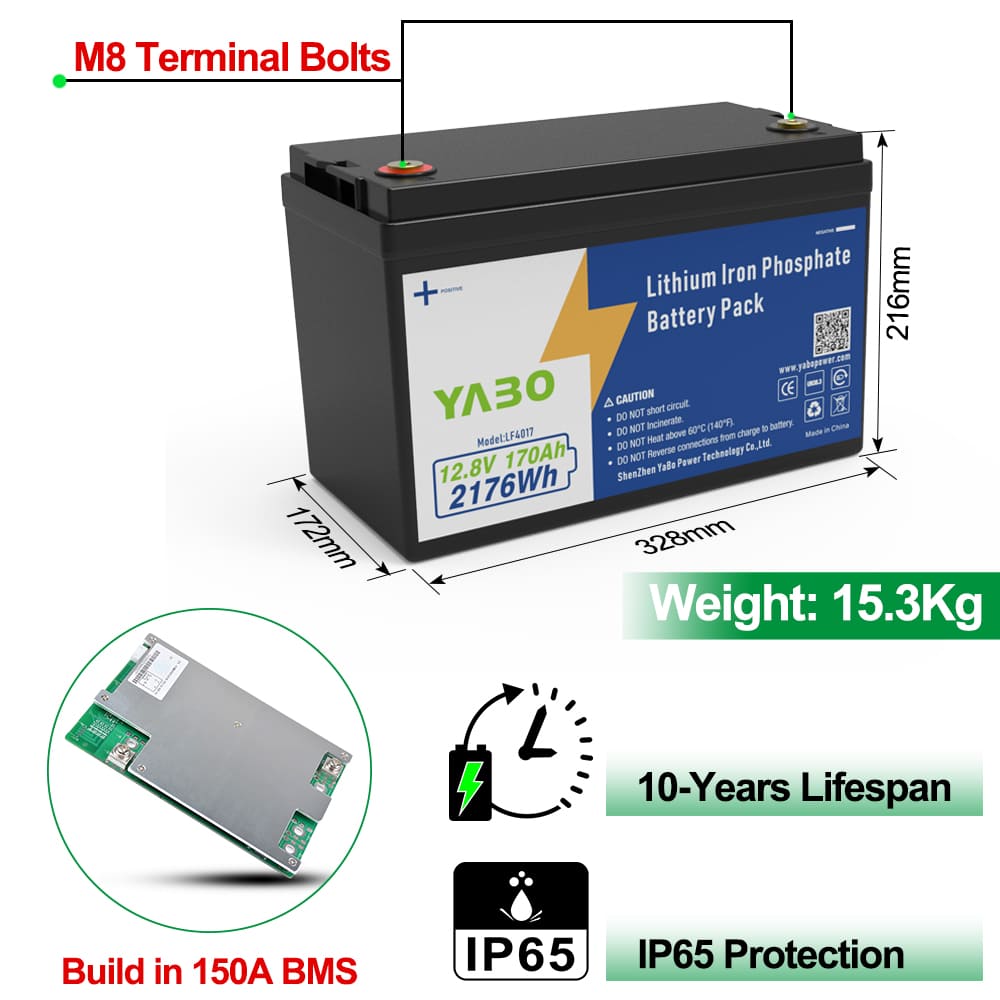

Structure

Cell & Format

170Ah,4S1P

Casing

Plastic

Dimension(L*W*H*TH)

328*172*216*216mm

Package Dimension

398*243*295mm

Weight

Approx. 15.8Kg

Terminal

M8

  • Voltage: 12.8V

  • Capacity: 170Ah

  • Battery Type: Lithium Iron Phosphate (LiFePO4)

  • Dimensions: 32.8cm x 17.2cm x 22.5cm

  • Weight: 15.8Kg (34.83lb)

  • Cycle Life: 6000 cycles

  • Application: Minn Kota Trolling Motor, RVs, Solar Systems, Marine Use

  • Safety Protection: Built-in Battery Management System (BMS)

  • Charging Voltage: 14.4V

  • Discharge Cut-off Voltage: 10V

  • Max Continuous Discharge Current: 150A

  • Max Pulse Discharge Current: 300A (5 seconds)

  • Charging Method: CC/CV

  • Operating Temperature: -20°C to 60°C

  • Storage Temperature: -10°C to 50°C

  • Waterproof Level: IP65

  • Shell Material: High-strength ABS

  • Terminal Type: M8

  • Self-discharge Rate: ≤3% per month

  • Energy Density: High energy density for longer runtime

  • LCD Display: Shows real-time battery status

  • Handles: Portable design with strong carrying handle

  • Eco-friendly: No heavy metals, non-toxic

  • Shock Resistance: Durable structure for rough environments

  • Warranty: 3 Years
