The YABO 12V 100Ah LiFePO4 battery is an advanced deep-cycle lithium battery ideal for trolling motors, RVs, marine applications, and solar power storage. Lightweight and efficient, it features an integrated Battery Management System (BMS) for superior safety and longevity.

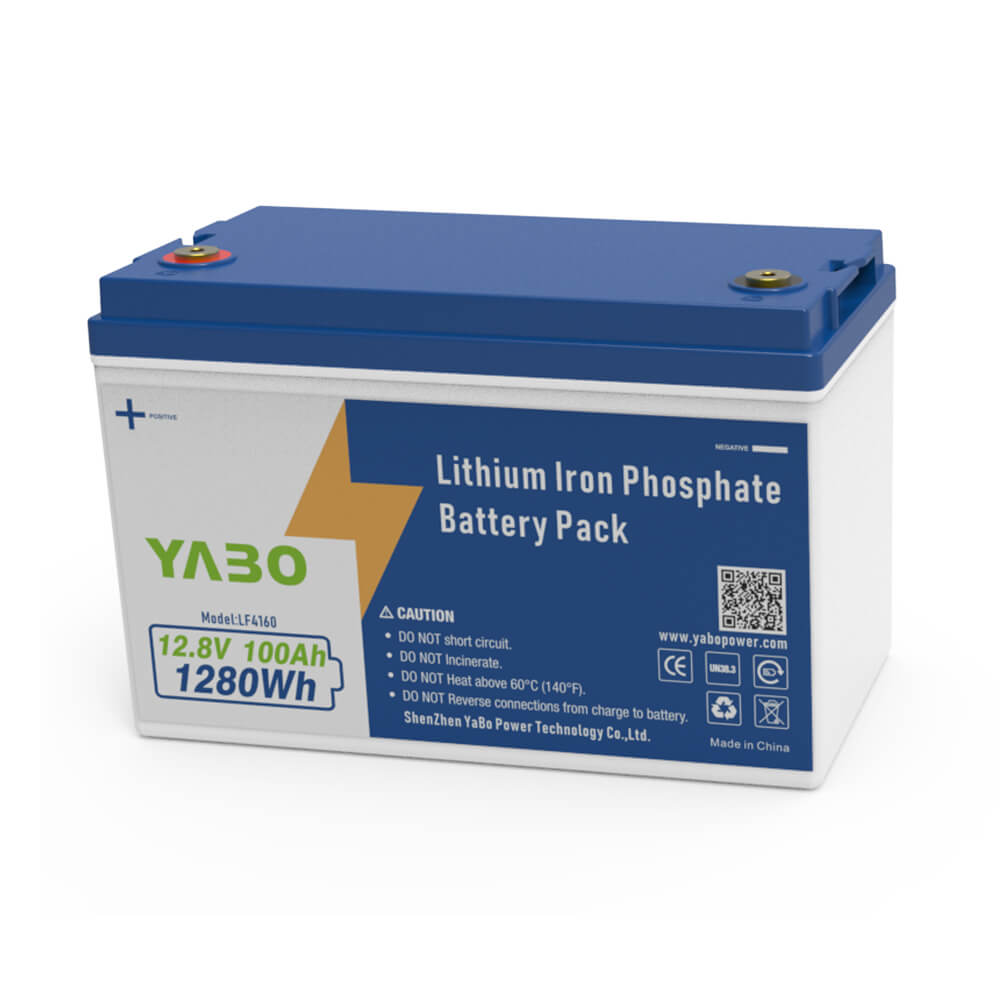

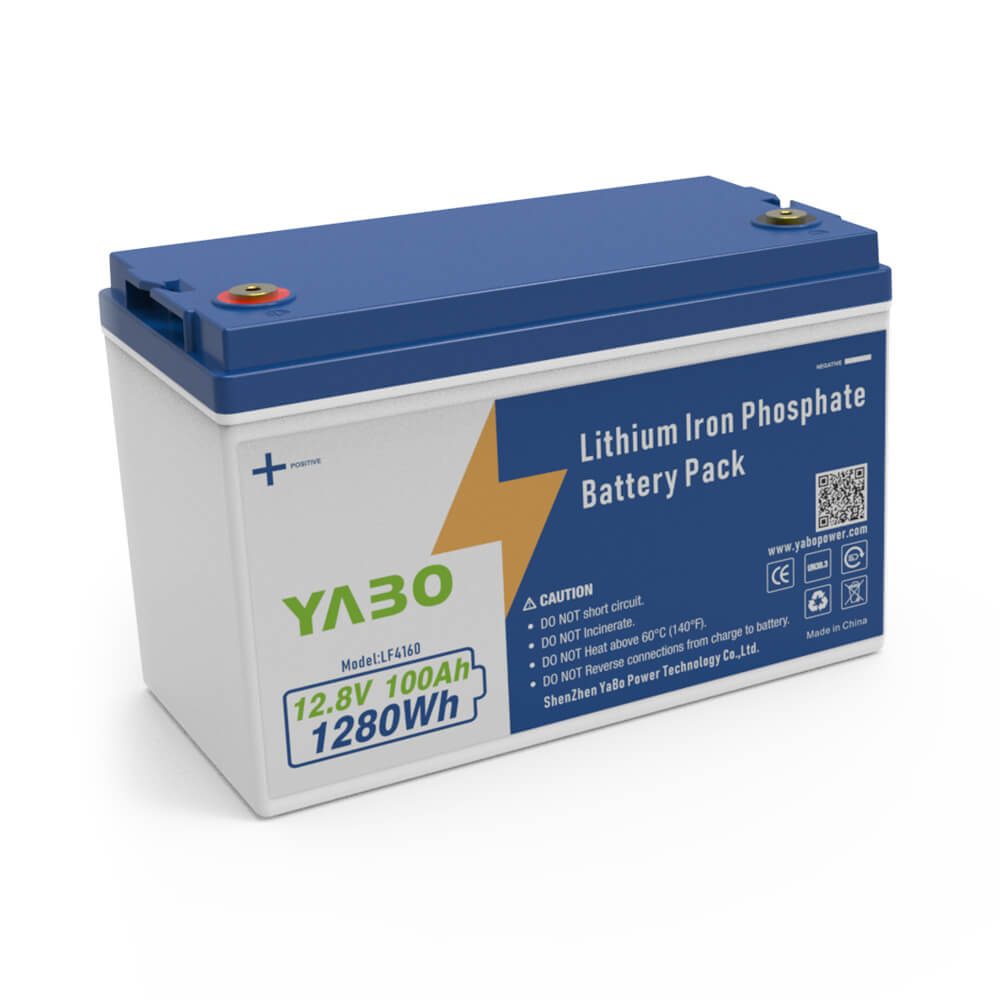

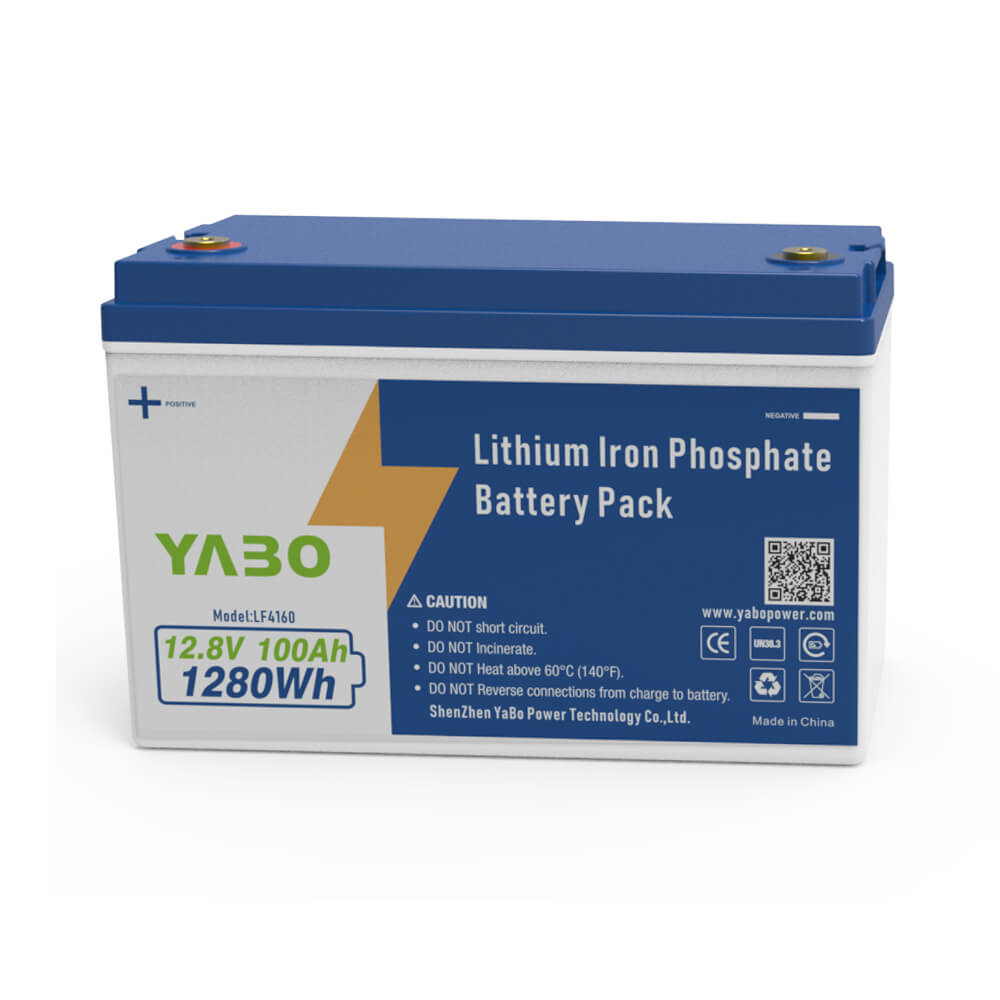

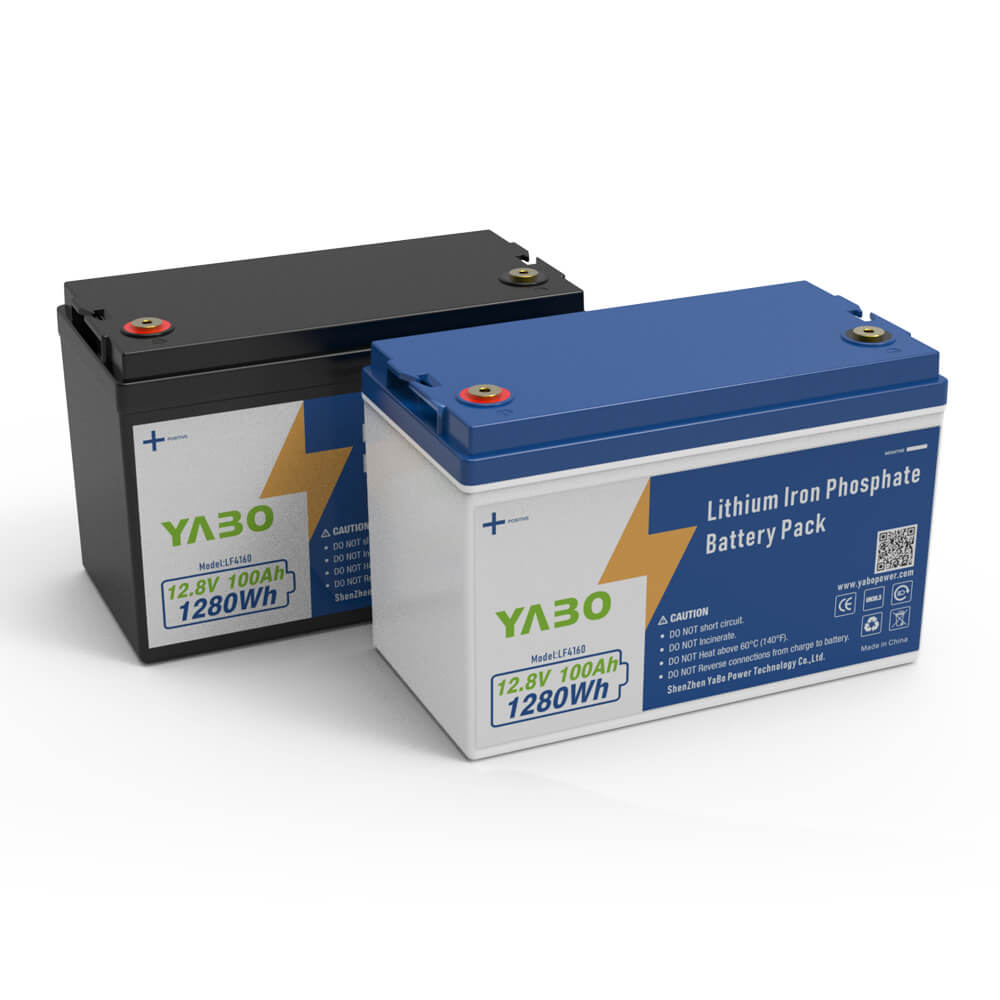

YABO 12V 100Ah Long Life LiFePO4 Battery for RVs and Off-Grid Power Supply
Product Features:
Electrical
Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah@0.2C |
Energy | 1280Wh |
Internal Resistance | ≤50mΩ |
Cycle Life | 6000 Cycles |
Self Discharge | ≤3.5% per month at 25℃ |
Standard Charging | Max.Charging Voltage | 14.0~14.6V |
Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C |
Charging Current | 50A |
Max.Charging Current | 50A |
Standard Discharging | Discharging Current | 100A |
Max. Continuous Current | 100A |
Max.Pulse Current | 200A(<3S） |
Discharging Cut-off Voltage | 10.0 |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Water Dust Resistance | IP65 |
Structure | Cell & Format | Cylindrical cells and prismatic cells |
Casing | Plastic |
Dimension(L*W*H*TH) | 328*172*216*216mm |
Package Dimension | 398*243*295mm |
Weight | Approx. 13Kg |

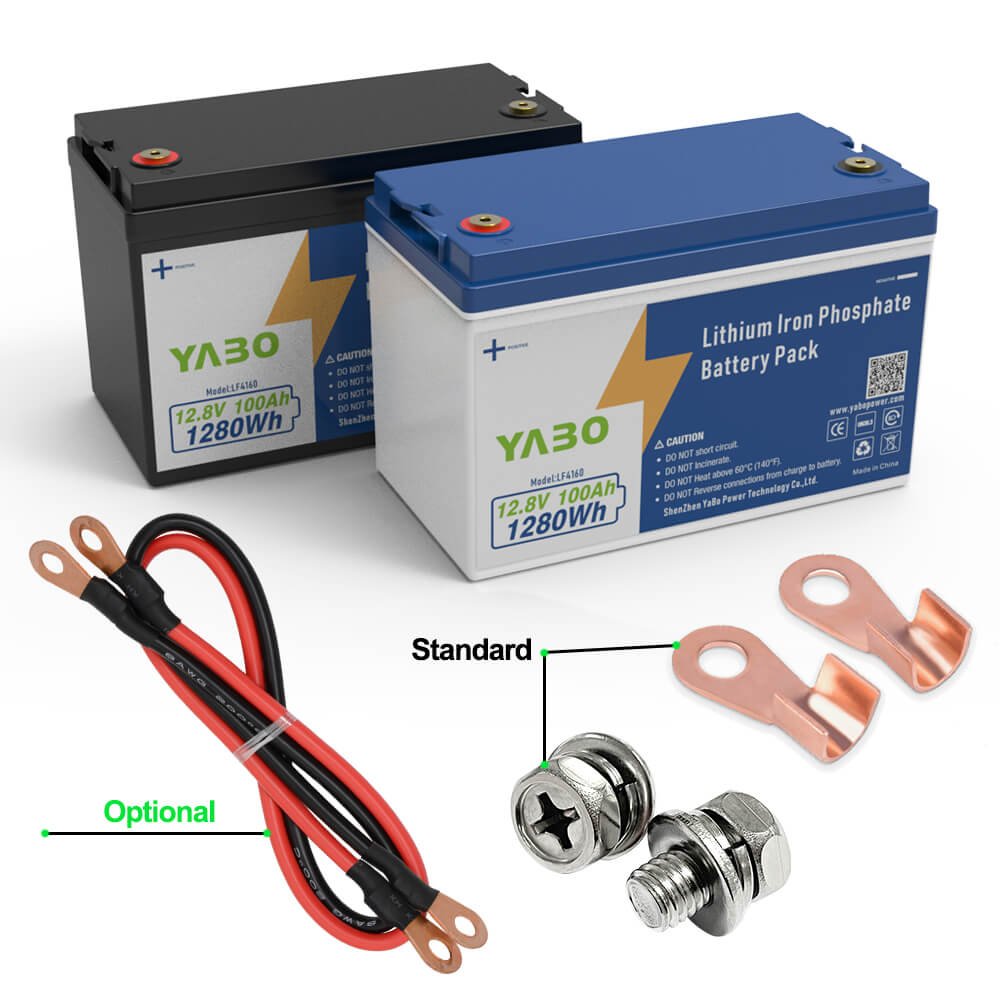

Terminal | M8 |
Get a customized plan in 30 seconds
