The YABO 12V 300Ah LiFePO4 battery is a high-performance deep-cycle battery designed for trolling motors, RVs, marine applications, and solar systems. Equipped with an advanced Battery Management System (BMS), this battery ensures reliability, long lifespan, and maximum safety.

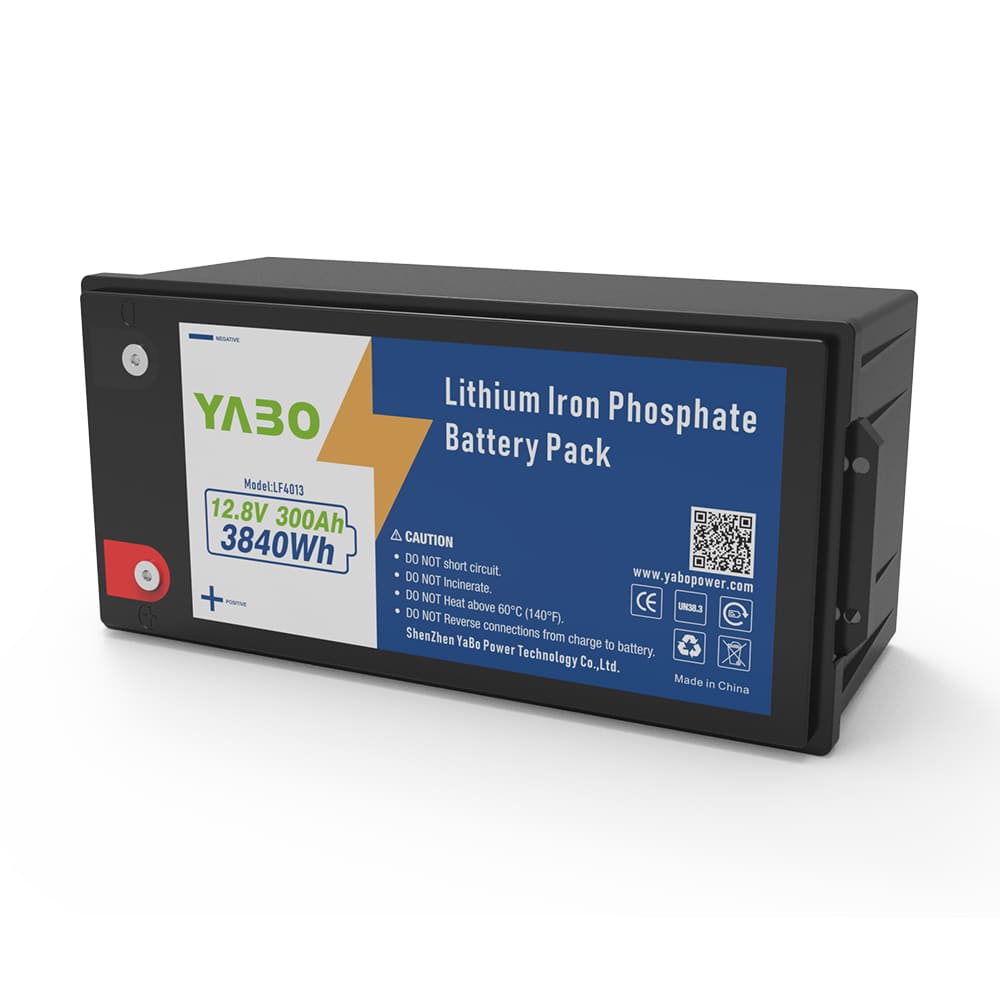

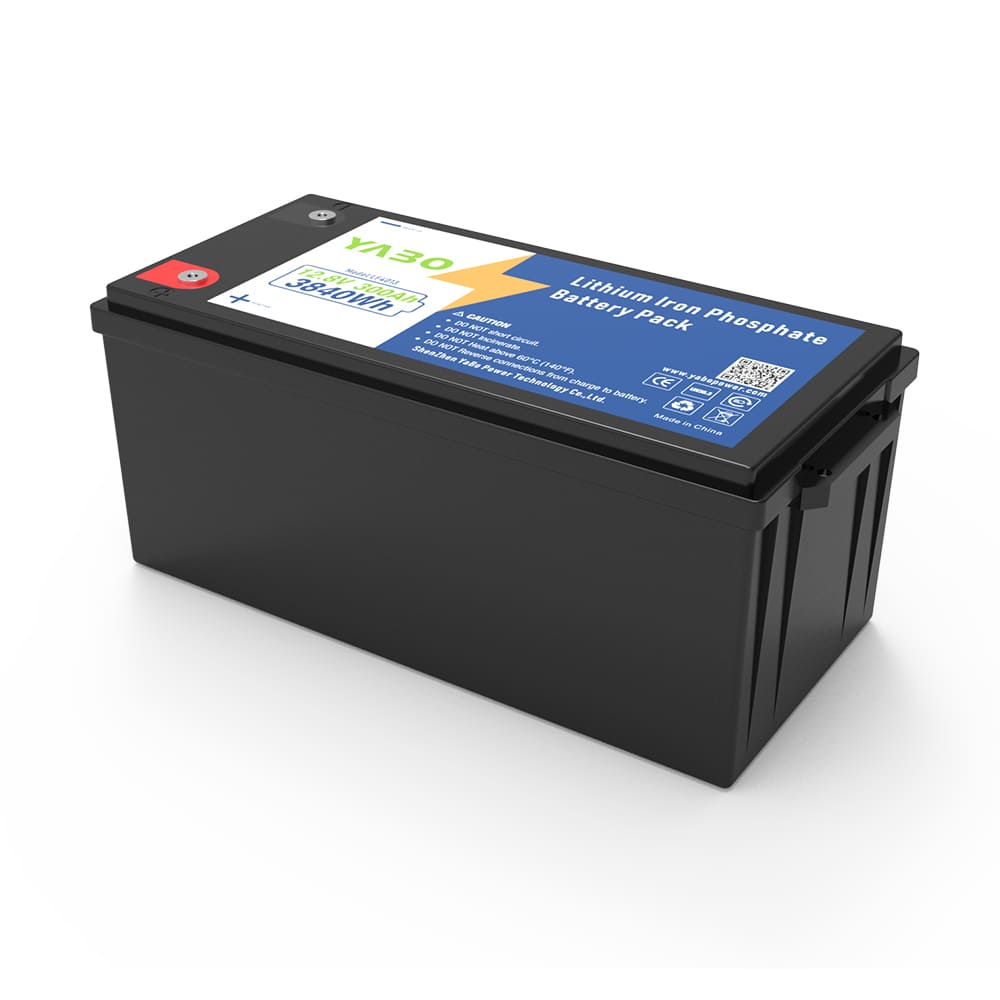

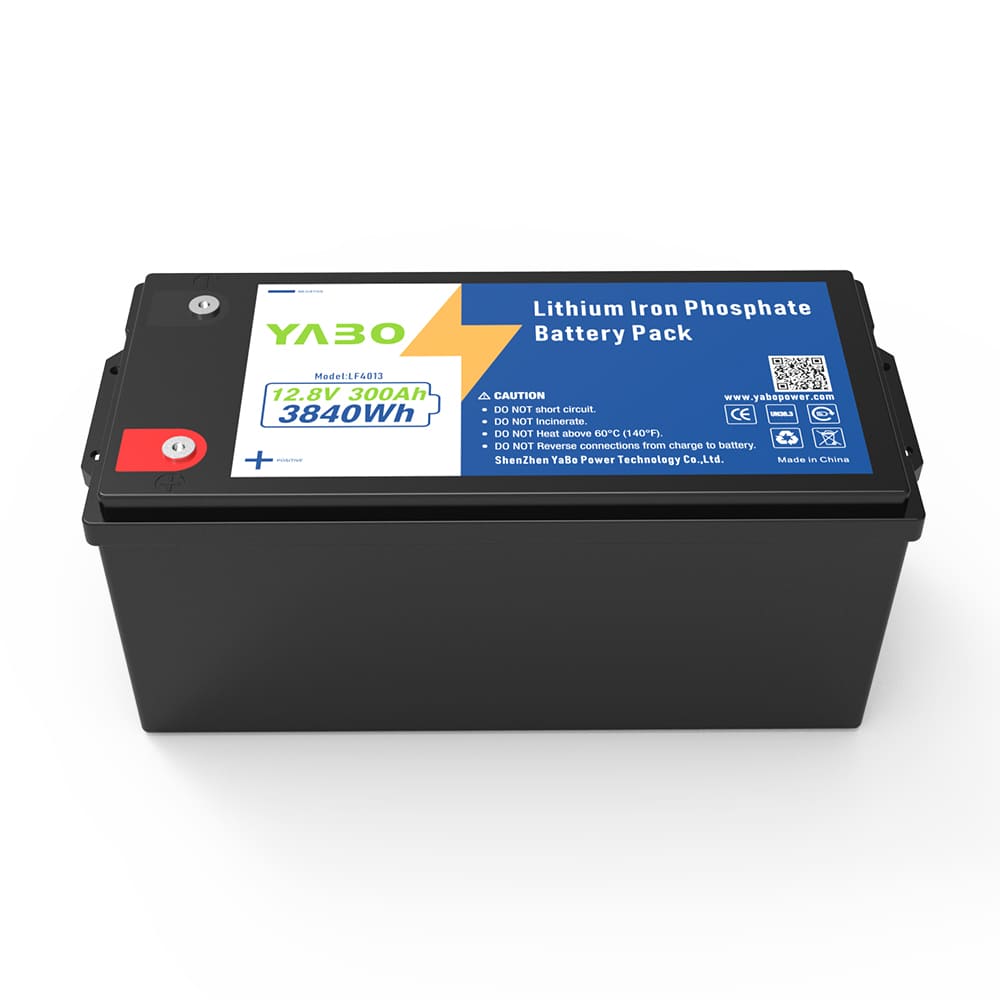

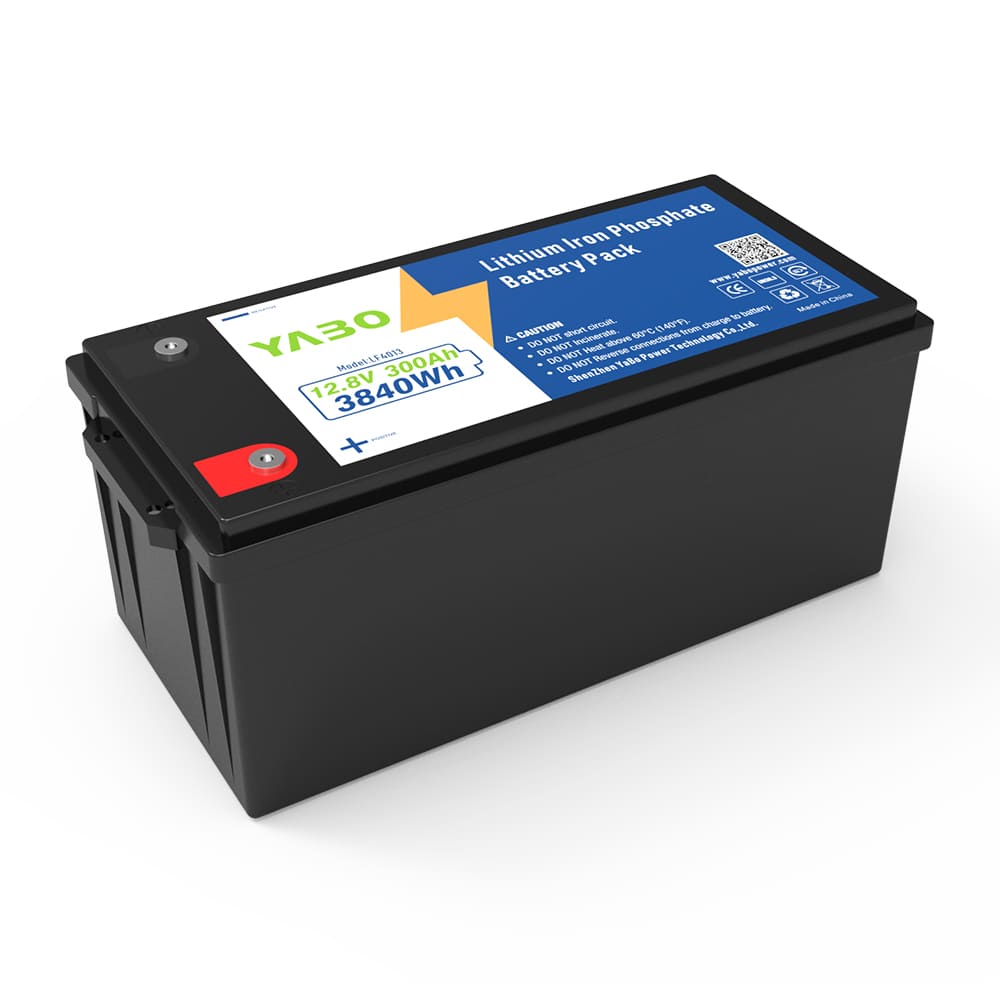

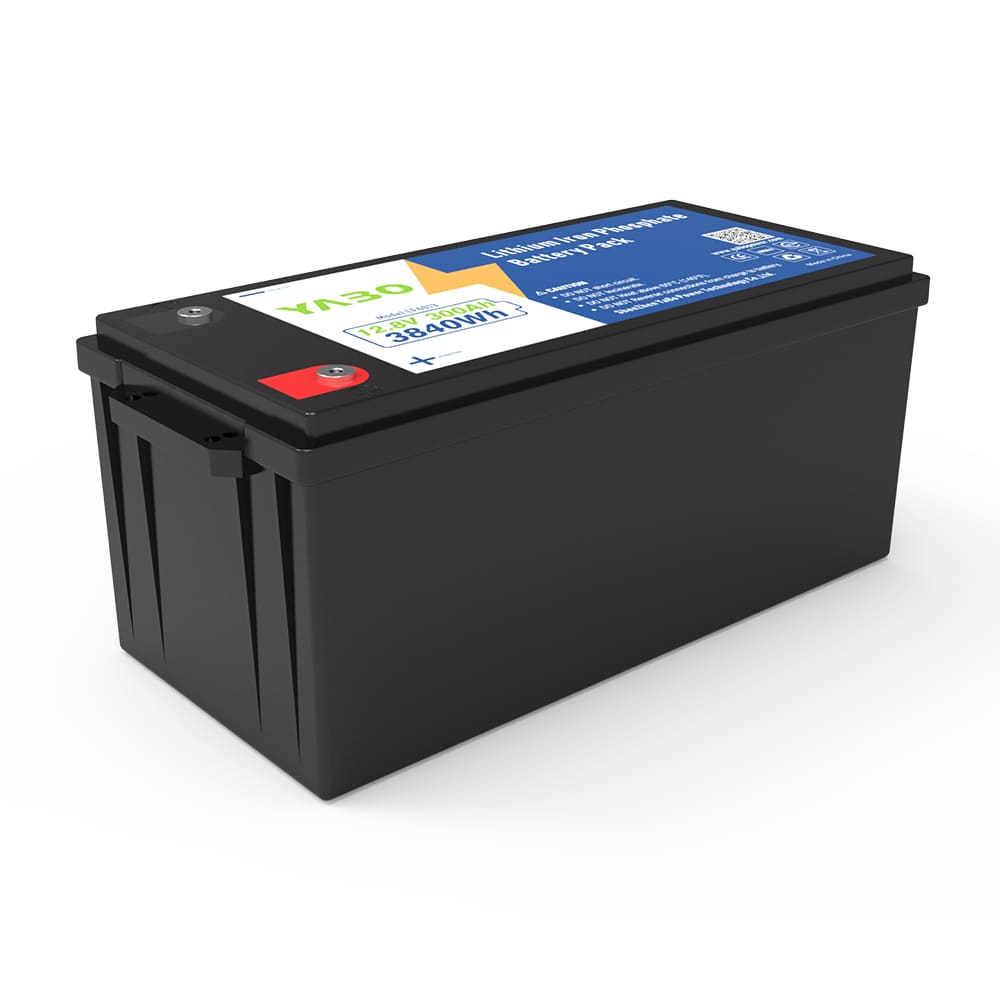

YABO 12V 300Ah Deep Cycle Battery for Marine Use, Power Station, and RVs
Product Features:
Electrical
Characteristics | Nominal Voltage | 12.8V |
Nominal Capacity | 300Ah@0.2C |
Energy | 3840Wh |
Internal Resistance | ≤35mΩ |
Cycle Life | 4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity |
Self Discharge | ≤3.5% per month at 25℃ |
Standard Charging | Max.Charging Voltage | 14.0~14.6V |
Charging Mode | At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C |
Charging Current | 100A |
Max.Charging Current | 100A |
Standard Discharging | Discharging Current | 100A |
Max. Continuous Current | 100A |
Max.Pulse Current | 200A(<3S） |
Discharging Cut-off Voltage | 10.0 |
Operating Condition | Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
Water Dust Resistance | IP55 |
Structure | Cell & Format | 4S1P, prismatic |
Casing | Plastic |
Dimension(L*W*H*TH) | 522*270*217*217mm |
Weight | Approx. 27.5Kg |

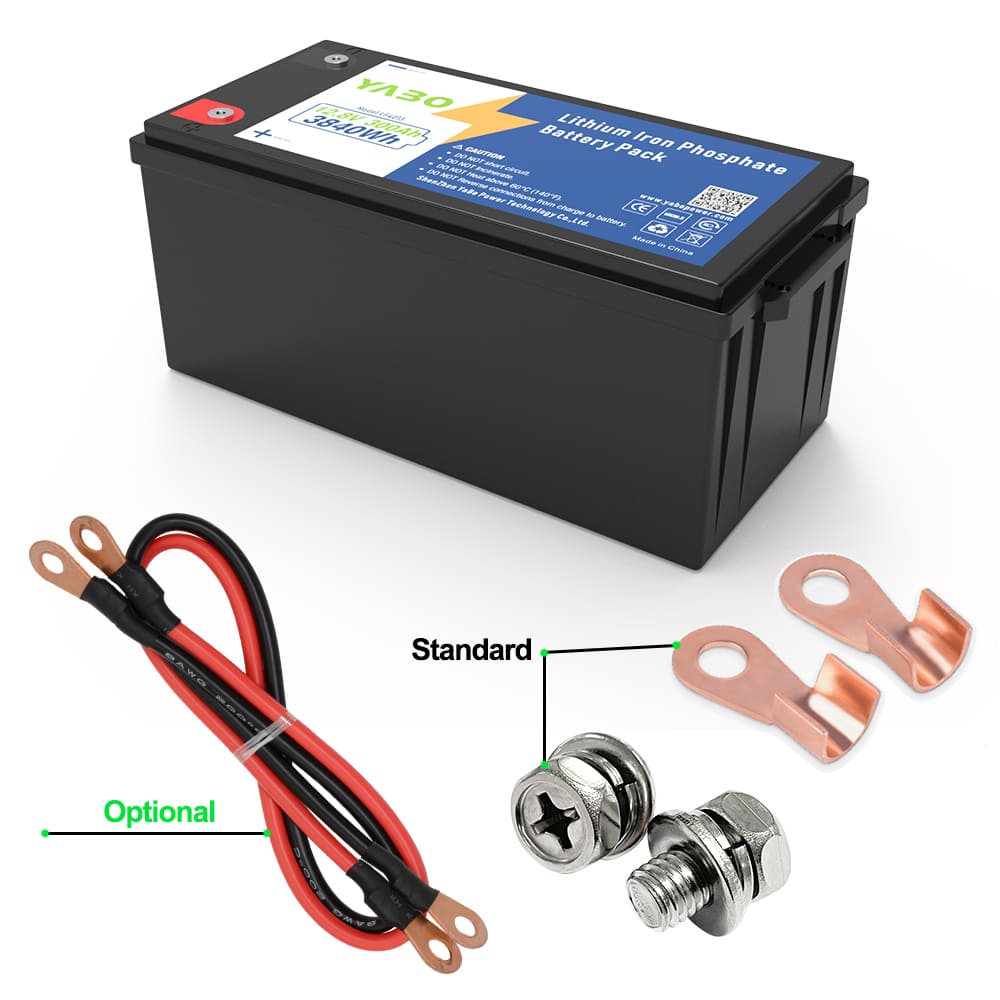

Terminal | M8 |
