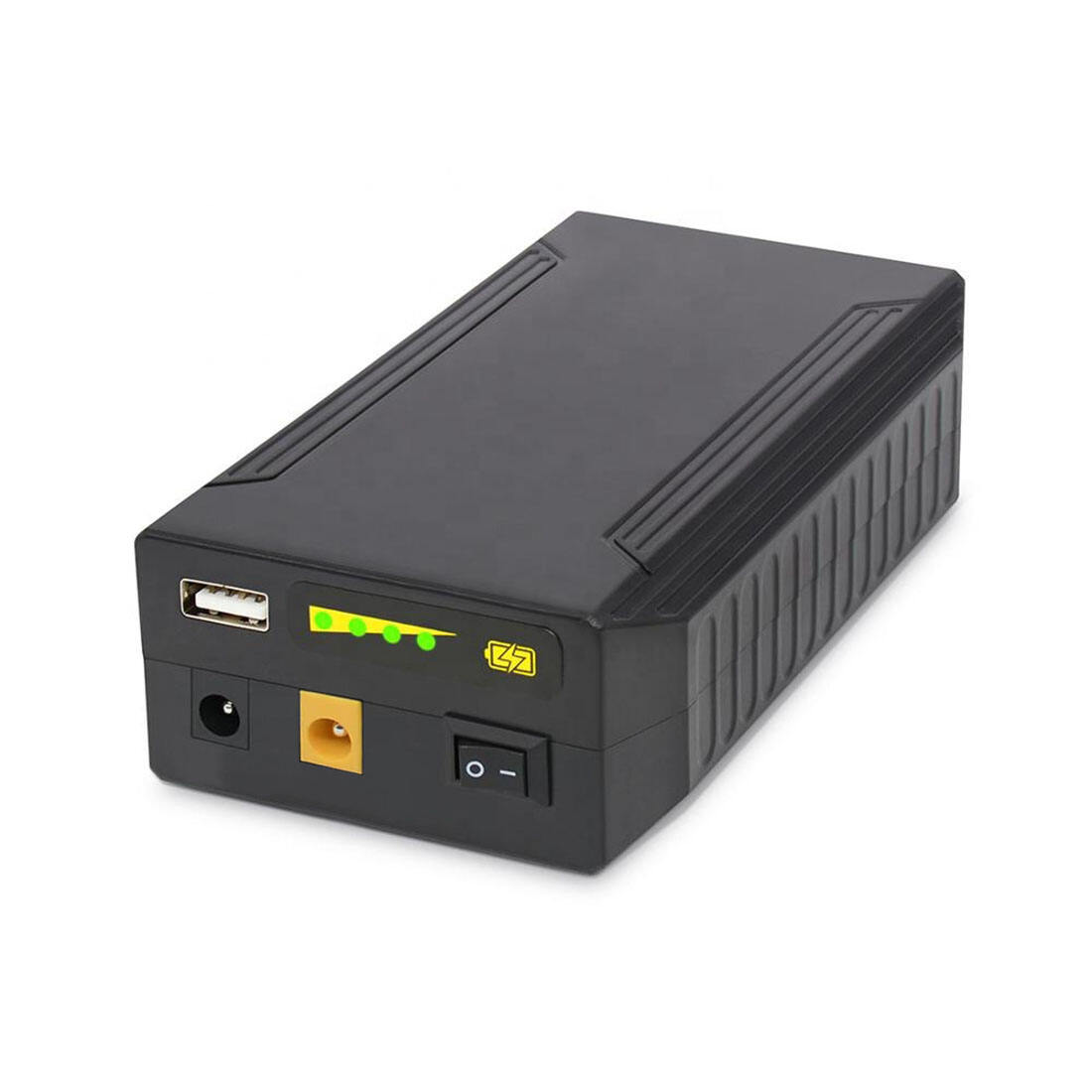

YABO YB12011000--USB 12V 11000mAh Lithium ion battery pack 5V/9V/12V DC USB Output Portable Li-ion Power Bank Battery
Features

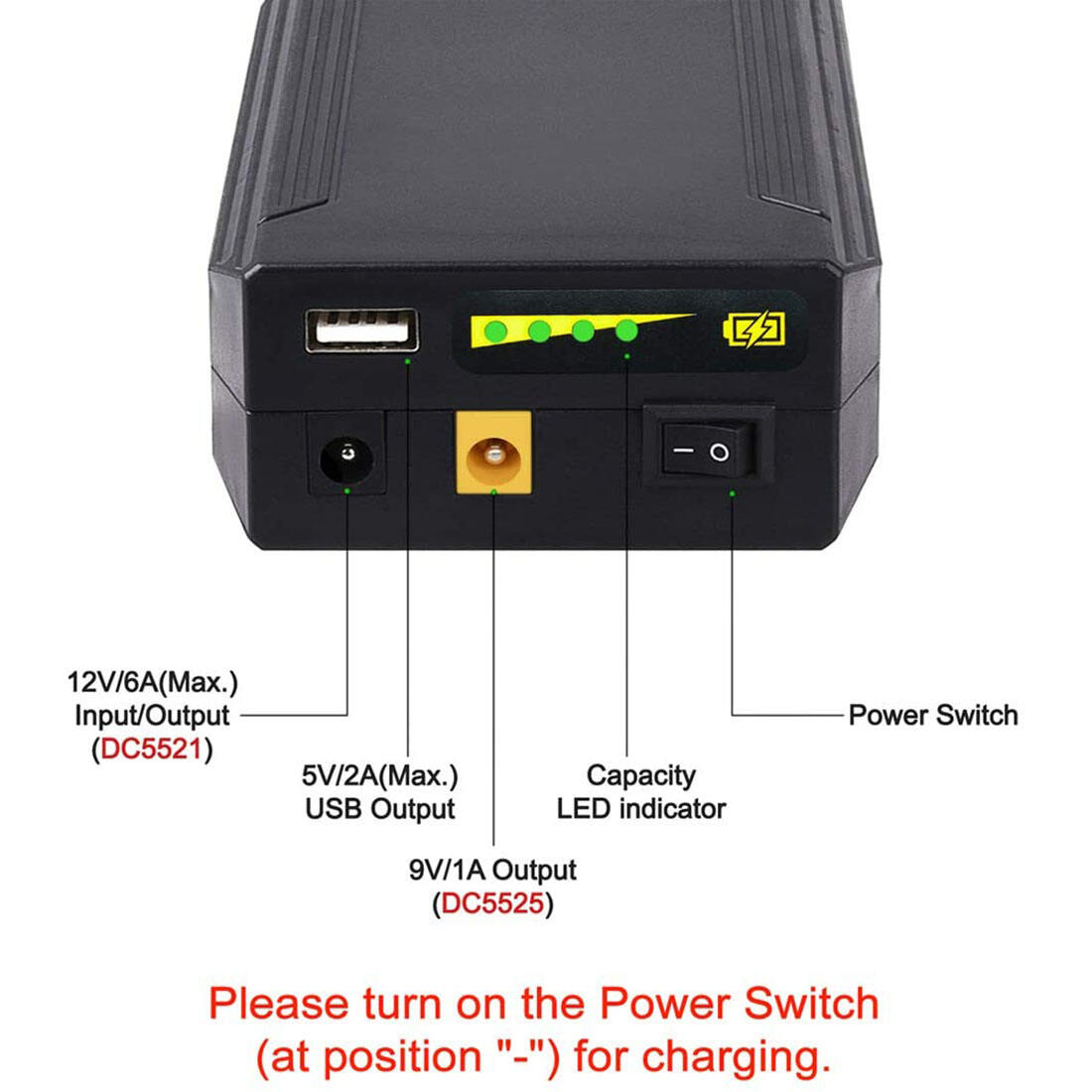

- High capacity 122Wh lithium-ion battery with triple DC outputs: 11.1V (12.6-9V)/6A max (DC5521), 9V/1A (DC5525), and 5V/2A USB.
- Intelligent multi-LED indicator for clear battery percentage display.
- Broad compatibility with 12V devices (LED strips, CCTV cameras, modems, robotic telescopes) and can power old 12V respiratory machines (50/M series) with an additional 24V converter.
- Dedicated 9V output for devices like guitar multi-effects pedals. Critical Note: A reversed polarity cable (not included) is required to connect to most center-negative guitar pedals.
- Built-in comprehensive circuit protection against overcharge, over-discharge, and short circuits.
- Important Charging Note: Ensure the physical battery switch is turned ON (to "-" position) for charging to initiate.
- Overview
- Recommended Products
- 12V DC output (up to 6A / DC5521)
- 9V DC output (DC5525)
- 5V USB output (up to 2A)
- Over-charge regulation
- Over-discharge prevention
- Short-circuit shielding
- Current and voltage stabilization
- LED strip lights, architectural lighting & LED bulbs
- IP/CCTV surveillance equipment
- Portable DVD players & multimedia monitors
- Routers, modems & network devices
- Amplifiers, transmitters & audio electronics
- Smartphones, tablets & USB gadgets
- Telescope accessories and outdoor equipment
- 1 x DC 12V Rechargeable Li-ion Battery.
- 1 x DC5525 male to DC5521 male power cable.
- 1 x DC5521 1 female to 2 male power splitter cable.
- 1 x 12.6V/1.5A AC/DC charger for battery.
- 1 x User manual
- Do not use the power bank in places with high humidity or where it may be exposed to wet.
- Do not modify or disassemble the power bank.
- Do not throw the power bank into fire or water.
- Do not place the power bank during charging on flammbable materials such as in the bed or carpets.
- No long-term placement in a low voltage state. The electricity charge to more than 50% of storage, can be stored for more than 6 months, but in order to extend the service life, it's suggested charge every three months.
Specification
| Place of Origin | Guangdong, China |
| Brand Name | TalentCell/YABO |
| Model Number | YB12011000-USB |
| Type | Li-ion battery with PCM |
| Nominal voltage | 12V |
| Typical capacity | 11000 mAh |
| Input | 12.6V/2A |
| Output | 12V (voltage range is 12.6-9V) /6A Max. 9V/1A. 5V/2A Max |
| Max continuous charge/discharge current | 3A(adjustable) |
| Connectors | 5.5*2.1mm DC jack+5.5*2.1mm DC plug |
| Protection | 12VPCM,over-charge/discharge protection, over-heat protection |
| Recharge cycle | More than 500 times |
| LED Indicator | Available |
| ON/OFF Switch | Available |
| Key word | 12v battery with charger |
| Standard Charge Time | Around 5H |

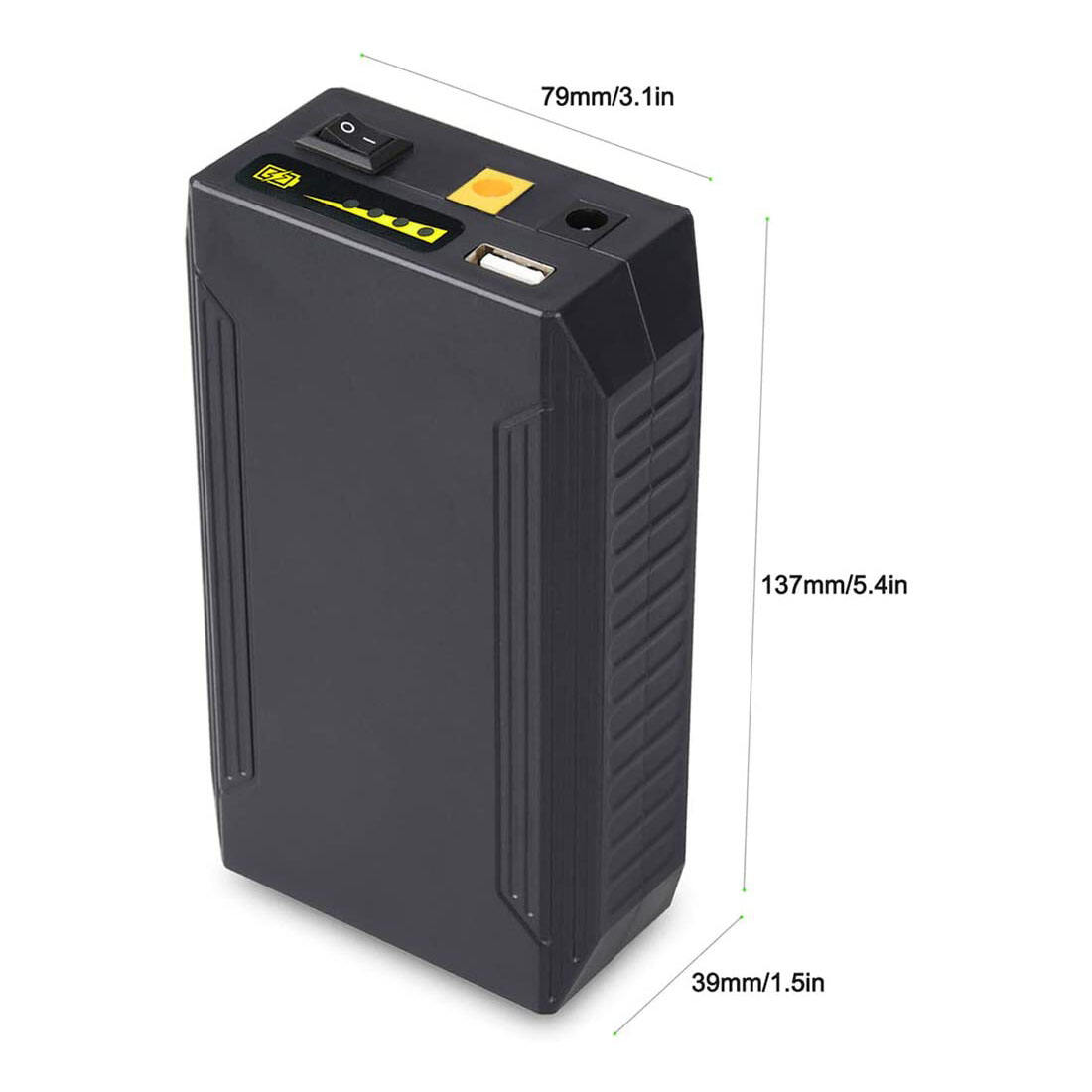

| Dimension | 39*80*138mm |
| Weight(approximate) | 500g |
| Operating temperature | -20 °C to 60 °C |
| Charge temperature | -0 °C to 45 °C |
| Storage temperature | -20 °C to 45 °C |
| Operating humidity | 5% to 90%,non-condensing |
| Application | Led Strip Light Products, CCTV Camera, IP Camera , Led Panel, Amplifier, Modem,Car DVR, Speaker, Mobile Phone |
1. YABO Rechargeable 11000mAh DC 12V/5V USB DC YB12011000-USB Lithium ion battery pack
The YABO YB12011000-USB Lithium-ion Battery Pack is a high-capacity, multi-output power module engineered for users who demand superior endurance, dependable voltage stability, and elevated versatility. Developed with an impressive 11000mAh energy reservoir, this advanced portable battery is designed to sustain a wide spectrum of electronic equipment—ranging from surveillance systems and LED installations to wireless communication devices, portable displays, and USB-powered technologies. With its robust performance and refined protective architecture, it delivers a sophisticated and reliable energy solution for both professional and recreational environments.
2. Exceptional 11000mAh Energy Storage for Long-Duration Applications
The heart of the YB12011000-USB lies in its meticulously selected 18650 lithium-ion cells, configured to deliver an expansive 11000mAh capacity. This elevated energy density not only prolongs operational runtime but also ensures consistent voltage output even during continuous load conditions. Whether supporting LED lighting arrays, long-term CCTV monitoring, mobile broadcasting equipment, or networking hardware, this power pack maintains unwavering performance throughout extended usage cycles.
3. Multi-Voltage Output Architecture for Broadened Compatibility
Designed to accommodate diverse power requirements, the YB12011000-USB integrates several output channels:

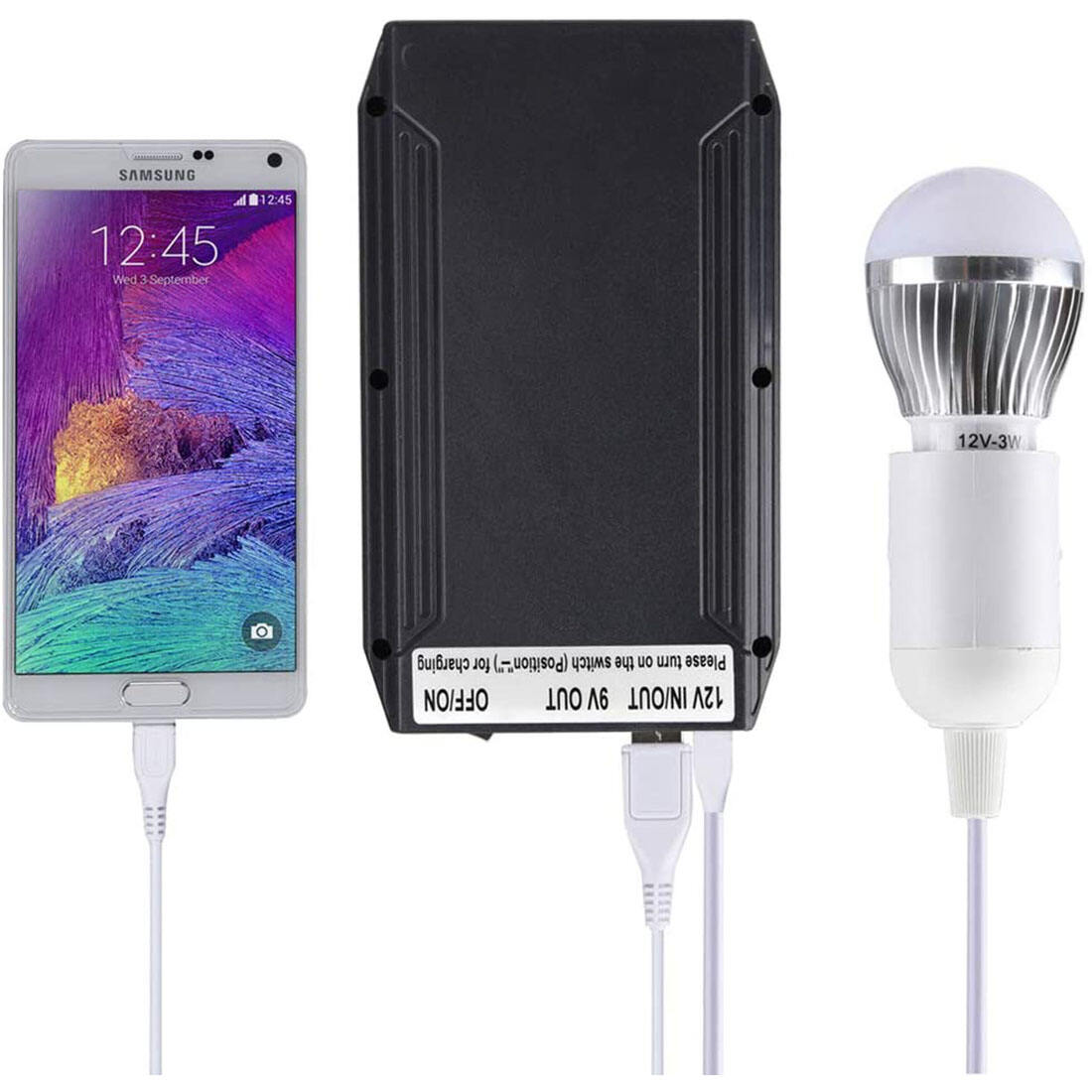

This multi-tiered voltage configuration empowers the battery to operate devices that span various power classes. It can energize professional-grade electronics—such as IP cameras, amplifiers, routers, or portable media players—while simultaneously charging smartphones, tablets, and other USB-based peripherals. The result is a refined and comprehensive energy hub suitable for specialized projects and general mobile power needs.
4. Intelligent Pass-Through Power Delivery
A hallmark of the YB12011000-USB is its capability to supply power while simultaneously recharging, ensuring uninterrupted functionality for mission-critical equipment. This intelligent pass-through mechanism is especially vital for continuous surveillance setups, architectural lighting systems, and applications requiring consistent illumination or data transmission. Users benefit from seamless power continuity without the need to halt operations during battery replenishment.
5. Advanced Safeguard Mechanisms for Maximum Operational Security
To protect both the battery and connected devices, the YB12011000-USB is fortified with a sophisticated protection suite, encompassing:
These integrated safety layers significantly enhance durability, operational reliability, and long-term performance. Accompanied by a precise LED capacity indicator, the user can effortlessly monitor remaining power levels with clarity.
6. Versatile Integration Across Numerous Applications

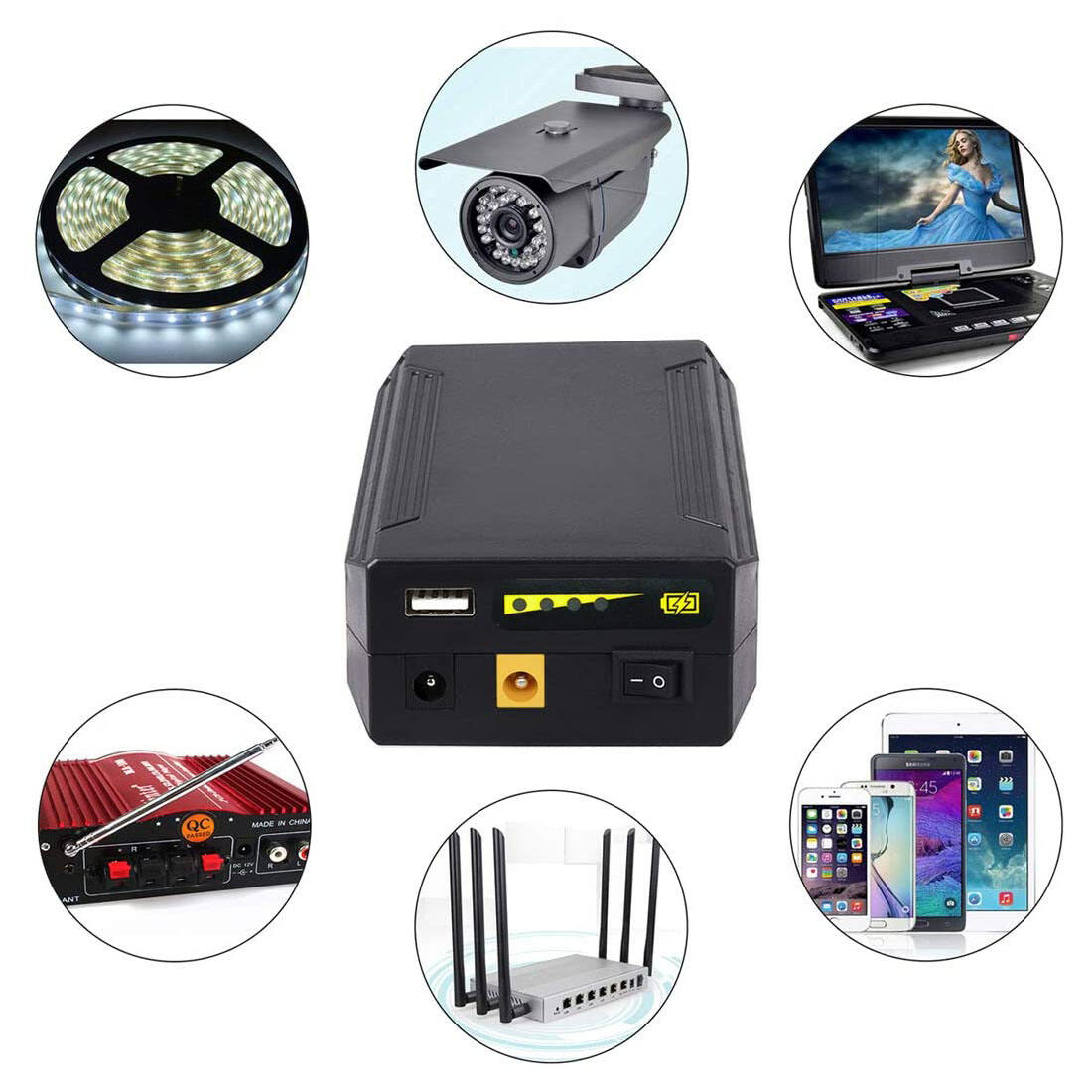

This high-capacity battery is exceptionally well-suited for:
Its extensive adaptability positions it as a vital resource for technicians, content creators, DIY enthusiasts, and users who require dependable energy on the move.
7. Package content
8. Notes
9. A Superior Power Solution for High-Demand Environments
Combining elevated capacity, refined output versatility, enhanced safety systems, and durable craftsmanship, the YABO YB12011000-USB stands as a premium portable power module. With its advanced design and exceptional energy endurance, it serves as a distinguished solution for users seeking sophisticated, long-lasting, and highly adaptable power support.
