YABO 12V Power Bank YB1203000-USB 12V 3000mAh Lithium ion Battery Pack DC USB Output for LED Strip, CCTV Camera and More
Features

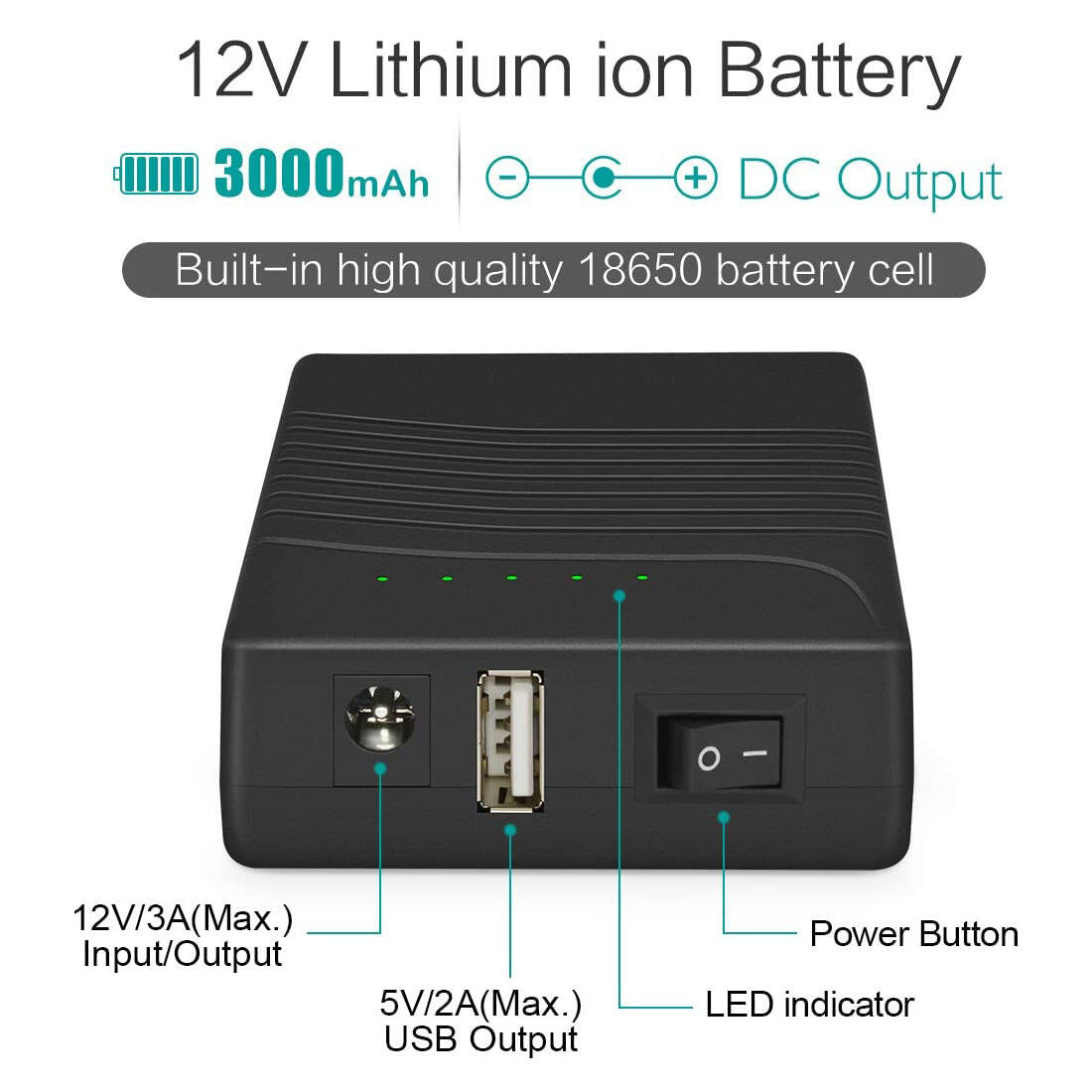

- Compact 3000mAh lithium-ion battery pack with dual outputs: a stable 5V USB port and a DC12V port (12.6V-9V range, 5.5x2.1mm interface, Inner Positive/Outer Negative).
- Integrated smart LED indicator with 5 LEDs for precise battery percentage display.
- Exceptional wide compatibility, powering 12V devices (LED strips, CCTV/IP cameras, amplifiers, modems, robotic telescopes) and 5V devices (smartphones, Bluetooth speakers) alike.
- Includes essential accessories: a 12.6V wall charger (indicator turns from Red to Green when fully charged) and a DC 5.5x2.1mm 1 Female to 2 Male power splitter cable.
- Comprehensive built-in protection circuit safeguards against over-charge, over-discharge, over-current, over-voltage, and short circuits.
- Designed for longevity: supports unlimited recharge cycles via a gentle 6-hour slow charge process, enhancing overall battery life.
- Overview
- Recommended Products
- Over-charge protection to prevent cell damage during extended charging
- Over-discharge protection to preserve cell lifespan
- Short-circuit protection for added device security
- Stable current regulation to maintain safe operating conditions

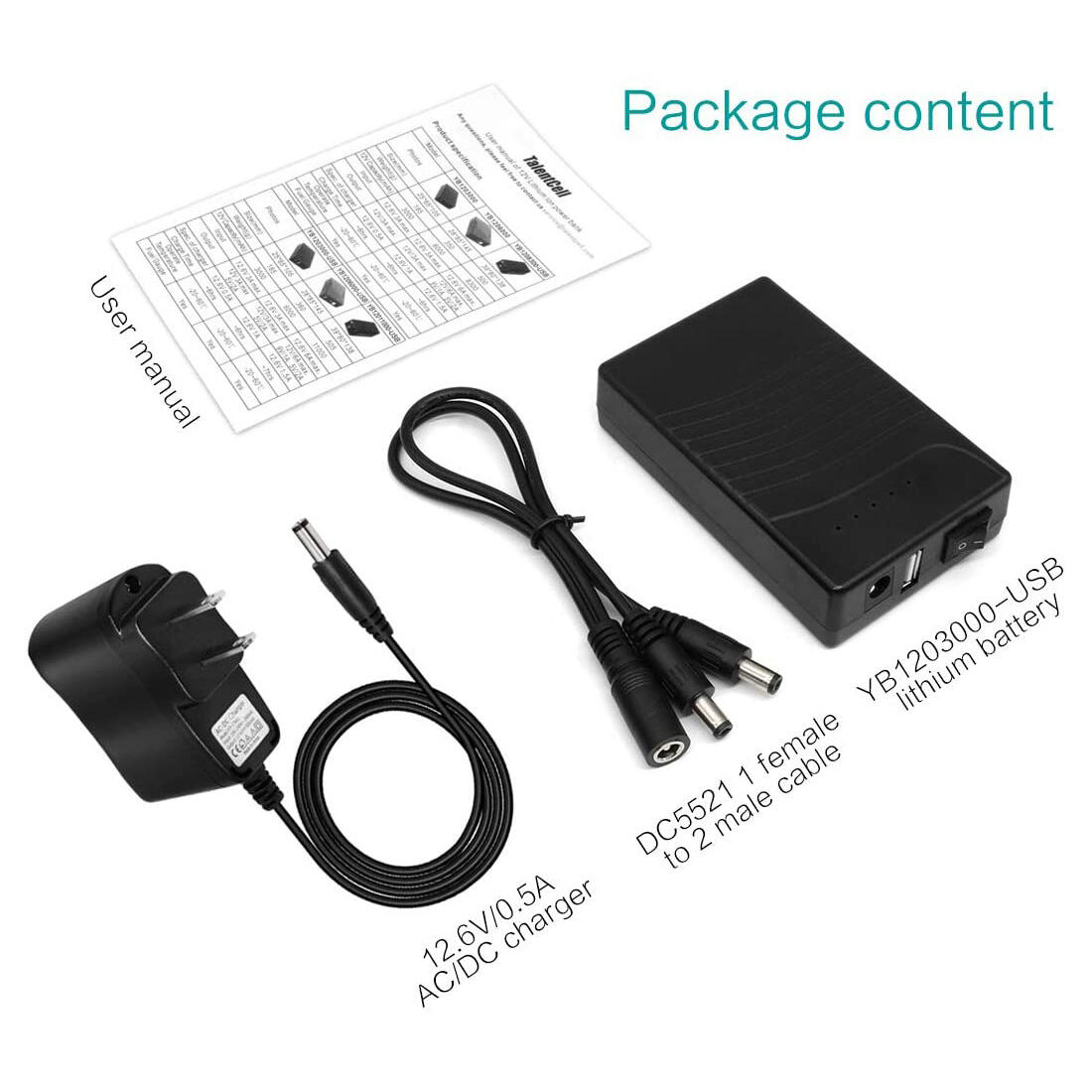

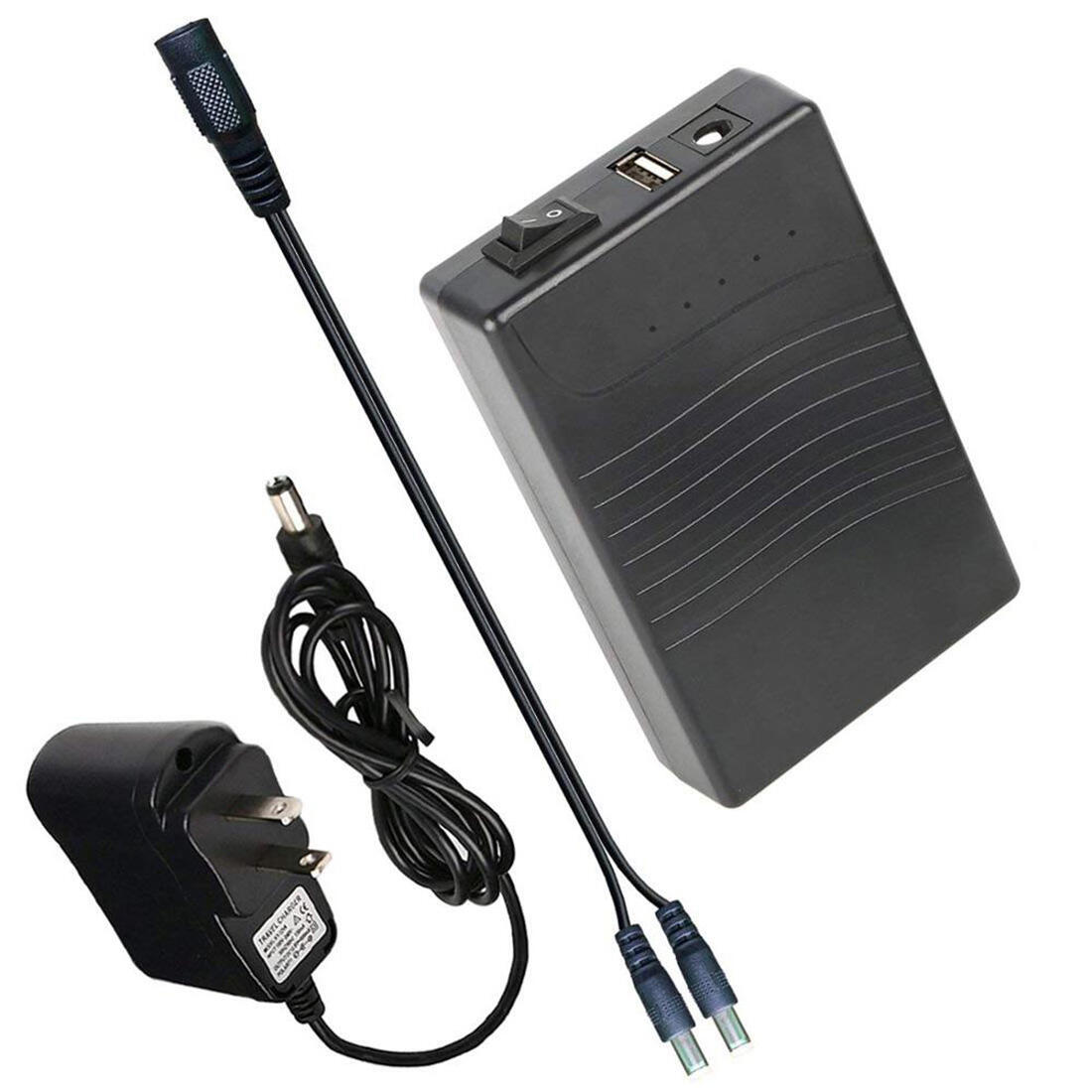

- 1x DC 12V/3000mAh Li-ion battery pack
- 1x DC5521 1 Female to 2 male power splitter cable
- 1x 12.6V 0.5A wall charger
- 1x User manual
- Do not use the 12V lithium battery pack in places with high humidity or where it may be exposed to wet.
- Do not modify or disassemble the power bank.
- Do not throw the 12V power bank into fire or water.
- Do not place the power bank during charging on flammbable materials such as in the bed or carpets.
- No long-term placement in a low voltage state. In order to extend the service life, it's suggested charge every three months if long term storage.
Specification
| Place of Origin | Guangdong, China |
| Brand Name | TalentCell/YABO |
| Model Number | YB1203000-USB |
| Type | Li-ion battery with PCM |
| Nominal voltage | 12V |
| Typical capacity | 3000 mAh |
| Input | 12.6V/3A Max |
| Output | 12.6V/3A Max. (our package include a 12.6V/0.5A AC/DC Charger) |
| Max continuous charge/discharge current | 3A(adjustable) |
| Charger Included | 0.5A charger:US plug/EU plug/UK plug |
| Connectors | 5.5*2.1mm DC jack+5.5*2.1mm DC plug |
| Protection | 12VPCM,over-charge/discharge protection, over-heat protection |
| Recharge cycle | More than 500 times |
| LED Indicator | Available |
| ON/OFF Switch | Available |
| Key word | 12v battery with charger |
| Standard Charge Time | Around 4H |

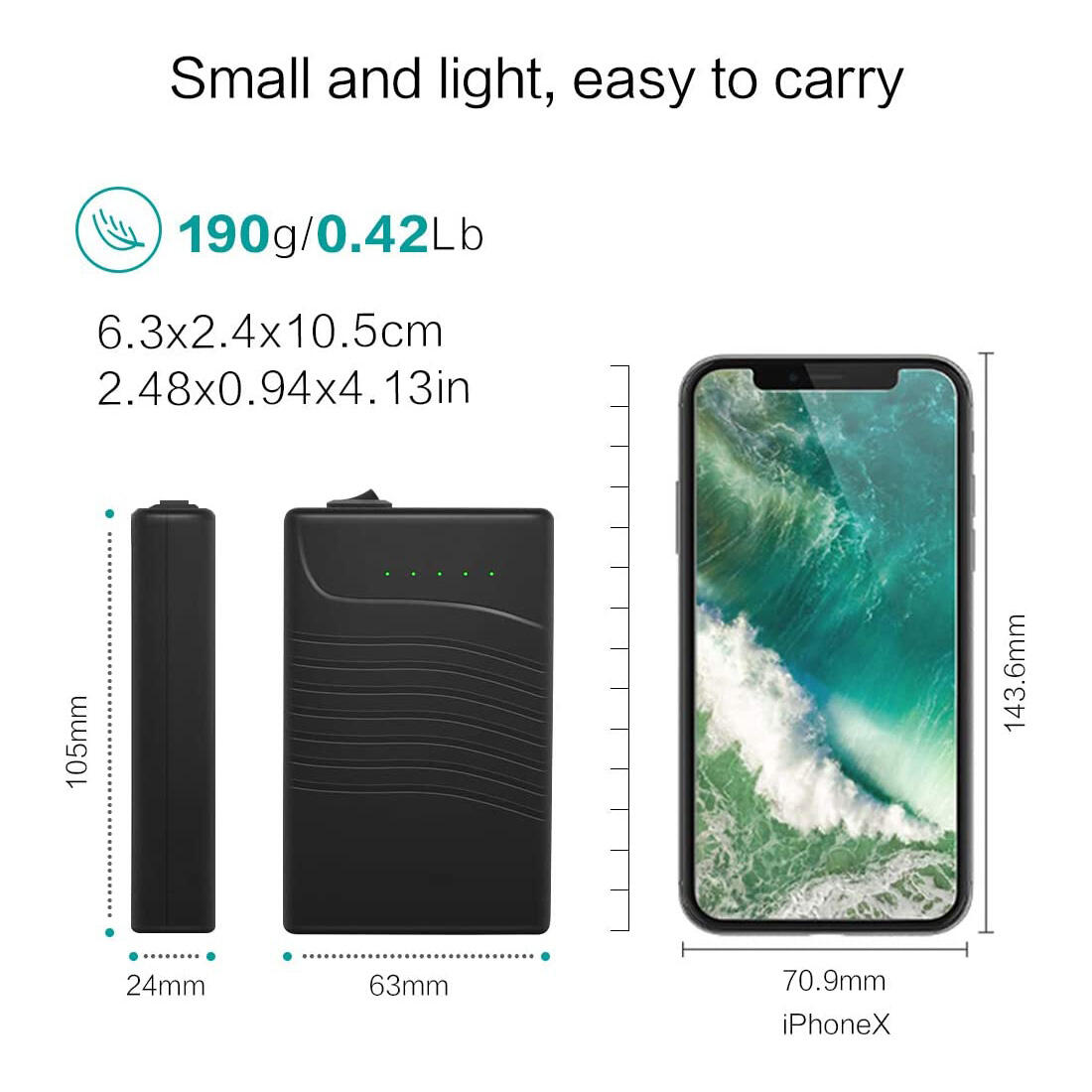

| Dimension | 23*60*100mm |
| Weight(approximate) | 190g |
| Operating temperature | -20 °C to 60 °C |
| Charge temperature | -0 °C to 45 °C |
| Storage temperature | -20 °C to 45 °C |
| Operating humidity | 5% to 90%,non-condensing |
| Application | LED Light Bar Products, CCTV Camera, LED Panel, Video, Speaker, Car DVR, Smart Phone |
1. YABO Rechargeable 3000mAh 12V/5V USB DC YB1203000-USB Lithium ion battery pack
YABO Rechargeable Lithium-ion Battery Pack is designed specifically to integrate with our Light bars, Flexible LED Lights, Digital cameras, Booth lighting, Bluetooth speaker, Smartphone, and most 12V or 5V electronic devices. The Lithium Ion Battery Pack can be recharged without limitations, as the battery is designed for a slow charge process (6 hours for full charge), which helps the battery pack last longer.
The LED indicator of the AC/DC charger will change from Red to Green if the battery is fully charged.
The YABO YB1203000-USB Lithium-ion Battery Pack is engineered to deliver dependable mobile power for a wide array of electronic devices. Combining a compact housing with advanced internal circuitry, this battery pack is an ideal solution for LED strip installations, CCTV/IP camera systems, communication equipment, portable speakers, routers, and many other 12V or 5V gadgets. Whether you work outdoors, need emergency backup power, or require a stable supply for continuous operation, this battery ensures consistent performance wherever it is used.
2. Versatile Dual-Voltage Output for Maximum Compatibility
Equipped with both a 12V DC output and a 5V USB port (up to 2A), the YB1203000-USB effortlessly supports a wide selection of electronics. From decorative LED lighting and surveillance cameras to smartphones, tablets, and other USB-powered tools, the dual-voltage design makes it an adaptable energy source that streamlines your power requirements. It reduces the need for multiple chargers and provides a unified power system suitable for home, office, outdoor activities, and mobile installations.

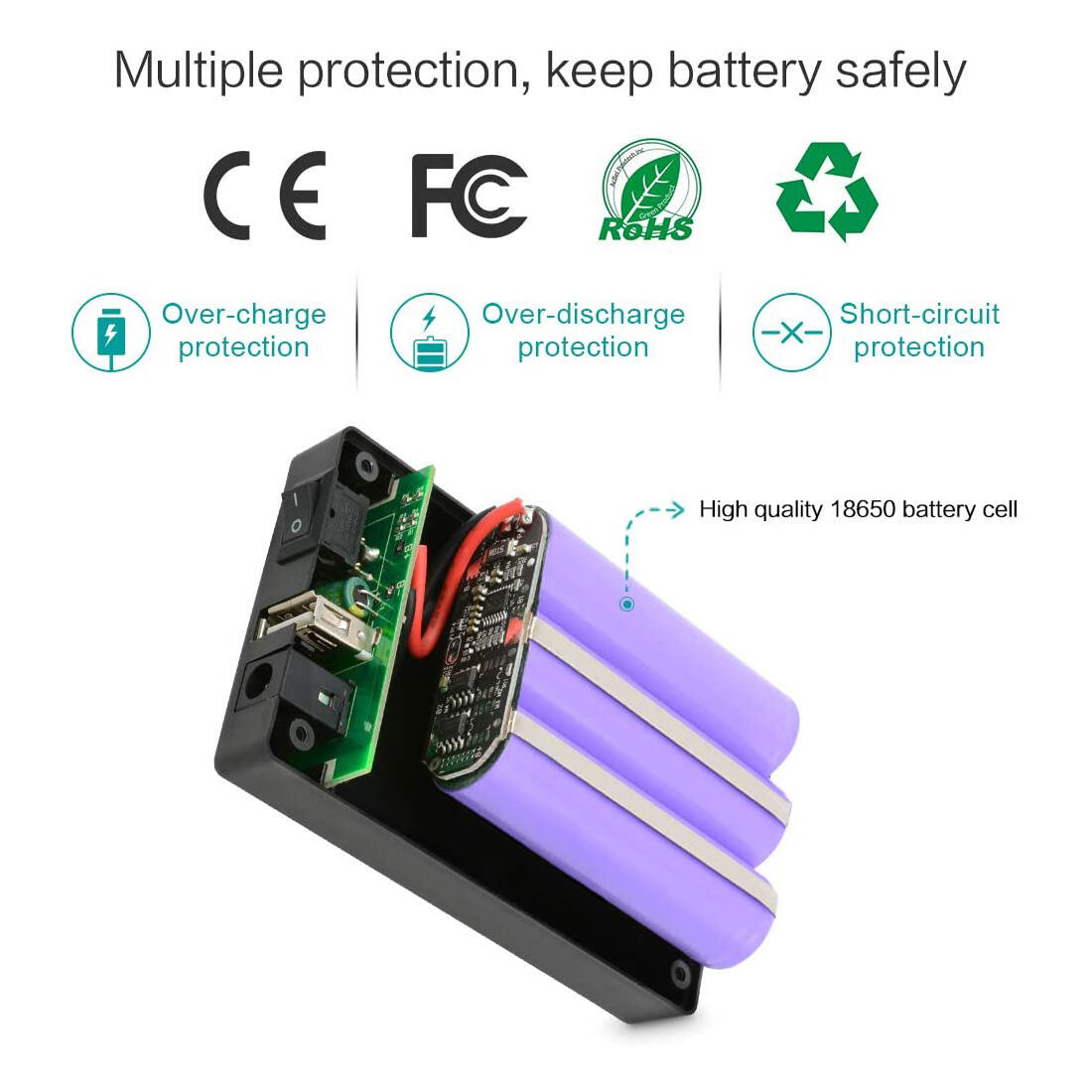

3. High-Grade 18650 Lithium Cells for Reliable Long-Term Use
At the core of this power unit is a pack of carefully selected high-quality 18650 lithium-ion cells, offering a total capacity of 3000mAh. These cells are known for their excellent energy density, stable discharge characteristics, and long cycle life. The battery delivers a smooth and consistent voltage output, minimizing fluctuations that could otherwise interrupt device operation. This dependable performance makes it ideal for sensitive electronics such as cameras, modems, and amplifiers that require steady power to function optimally.
4. Enhanced Safety Through Intelligent Protection Technology
Safety is a central part of the YB1203000-USB design. The built-in smart protection module shields the battery and connected devices from electrical anomalies. This system includes:
With certifications from CE, FCC, and RoHS, the battery pack meets international standards for electrical safety, environmental responsibility, and product reliability.
5. Ideal for a Broad Range of Devices and Applications
The battery is compatible with numerous products used in both professional and consumer environments. Its 12V output supports CCTV cameras, IP cameras, LED panels, routers, amplifiers, modems, and portable televisions. Meanwhile, the USB port can charge phones, tablets, and small USB devices. This wide compatibility makes it invaluable for photography setups, security installations, DIY lighting projects, broadcasting scenarios, and on-the-go workstation power.
6. Package content
7. Notes
8. A Practical, Eco-Friendly Power Solution
Built to be recharged and reused repeatedly, the YB1203000-USB offers an environmentally responsible alternative to disposable batteries. The robust interior cell configuration and durable exterior casing enhance longevity, providing sustained value over time and reducing environmental impact.
