YABO 12V Rechargeable Lithium ion Battery Pack YB1206000 12V 6000mAh Portable Li-ion Power Bank DC Output for LED Strip, Spectra Pump, CCTV Camera
Features

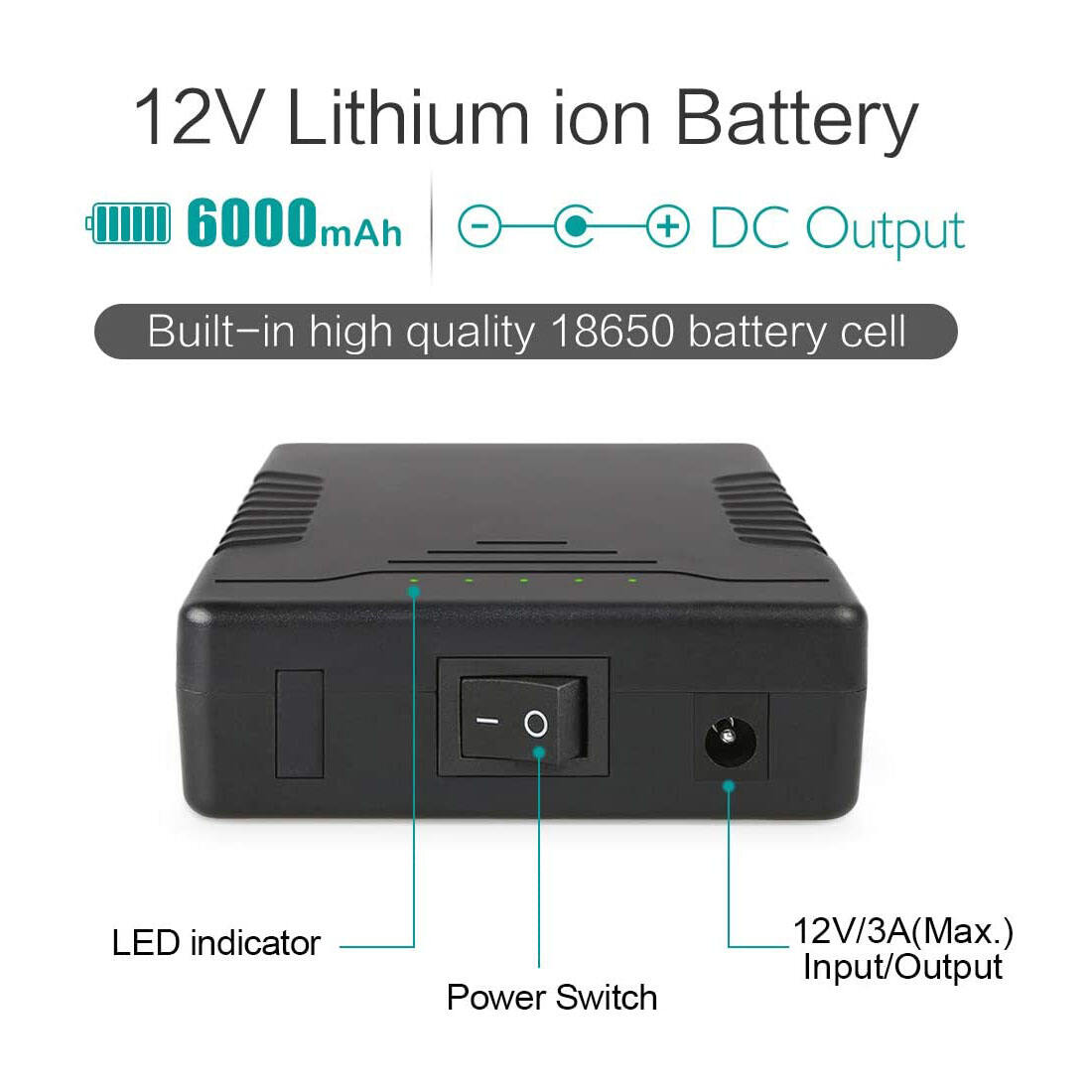

- High-capacity 6000mAh/66.6Wh rechargeable 12V lithium-ion battery pack with a DC5521 port (12.6-9V output, Inner Positive/Outer Negative), compact and portable.

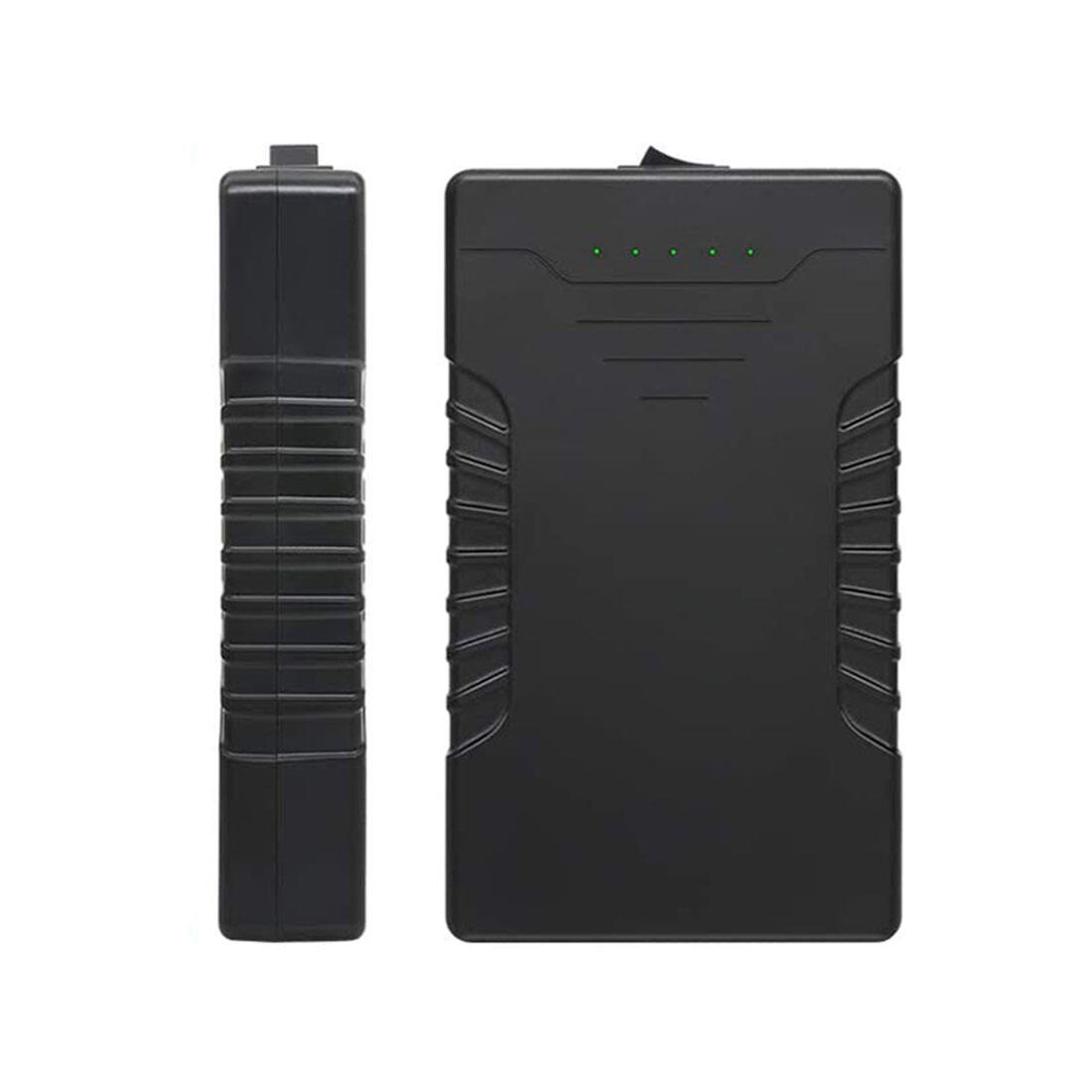

- Smart 5-LED indicator for clear battery percentage display; requires periodic charging during long-term storage to maintain health.
- Wide compatibility with 12V devices: powers LED strips/panels, heated jackets, CCTV/IP cameras, amplifiers, modems, speakers, telescopes (e.g., Celestron NexStar), and more.
- Includes a 12.6V/1A wall charger (LED turns from Red to Green when fully charged) and a DC 1-female-to-2-male power splitter cable.
- Built-in multiple safety protections: over-charge, over-discharge, and short-circuit protection for safe operation.
- Designed for longevity: supports unlimited recharge cycles via a gentle 8-hour slow charge process; backed by an 2 years warranty.
- Overview
- Recommended Products
- Over-charge conditions
- Over-discharge damage
- Short-circuit risks
- Excessive current
- LED strip lights and LED panel systems
- CCTV and IP surveillance cameras
- Amplifiers, modems, and wireless routers
- Portable DVD players and small monitors
- Telescopes and electronic accessorie
- Smartphones, tablets, and USB gadgets
- 1x DC 12V/5V lithium ion battery pack
- 1x DC5521 1 female to 2 male power splitter cable
- 1x 12.6V/1A AC/DC charger
- 1x User manual
- Do not use the 12V lithium battery pack in places with high humidity or where it may be exposed to wet.
- Do not modify or disassemble the power bank.
- Do not throw the 12V power bank into fire or water.
- Do not place the power bank during charging on flammbable materials such as in the bed or carpets.
- No long-term placement in a low voltage state. In order to extend the service life, it's suggested charge every three months if long term storage.
Specification
| Place of Origin | Guangdong, China |
| Brand Name | TalentCell/YABO |
| Model Number | YB1206000 |
| Type | Li-ion battery with PCM |
| Nominal voltage | 12V |
| Typical capacity | 6000 mAh |
| Input | 12.6v 1A |
| Output | 12V 3A and 5V 2A |
| Max continuous charge/discharge current | 3A(adjustable) |
| Charger Included | 0.5A charger:US plug/EU plug/UK plug |
| Connectors | 5.5*2.1mm DC jack+5.5*2.1mm DC plug |
| Protection | 12VPCM,over-charge/discharge protection, over-heat protection |
| Recharge cycle | More than 800 times |
| LED Indicator | Available |
| ON/OFF Switch | Available |
| Key word | 12v battery with charger |
| Standard Charge Time | Around 5H |

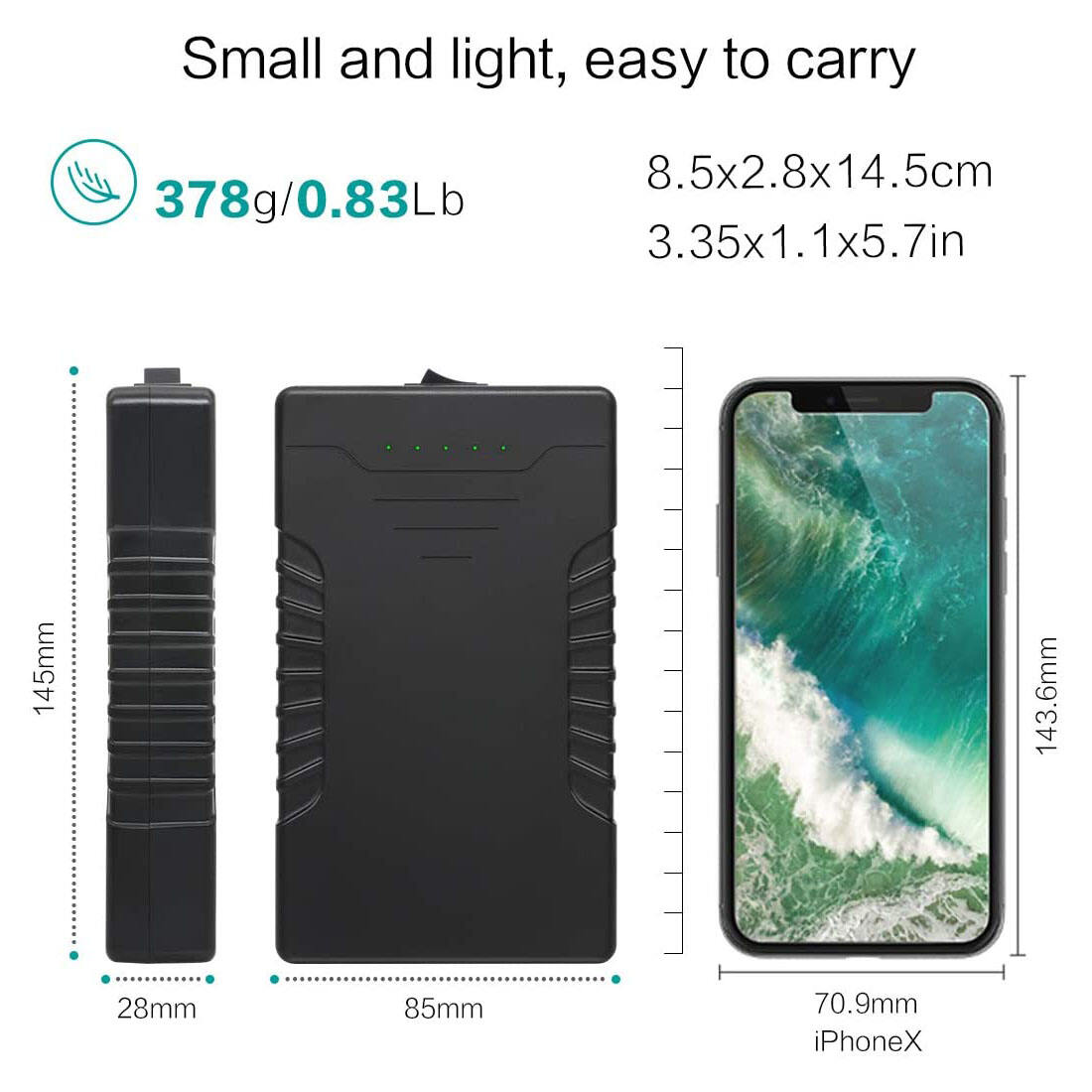

| Dimension | 28*85*148mm |
| Weight(approximate) | 380g |
| Operating temperature | -20 °C to 60 °C |
| Charge temperature | -0 °C to 45 °C |
| Storage temperature | -20 °C to 45 °C |
| Operating humidity | 5% to 90%,non-condensing |
| Application | LED Light Bar Products, CCTV Camera, LED Panel, Video, Speaker, Car DVR, Smart Phone |

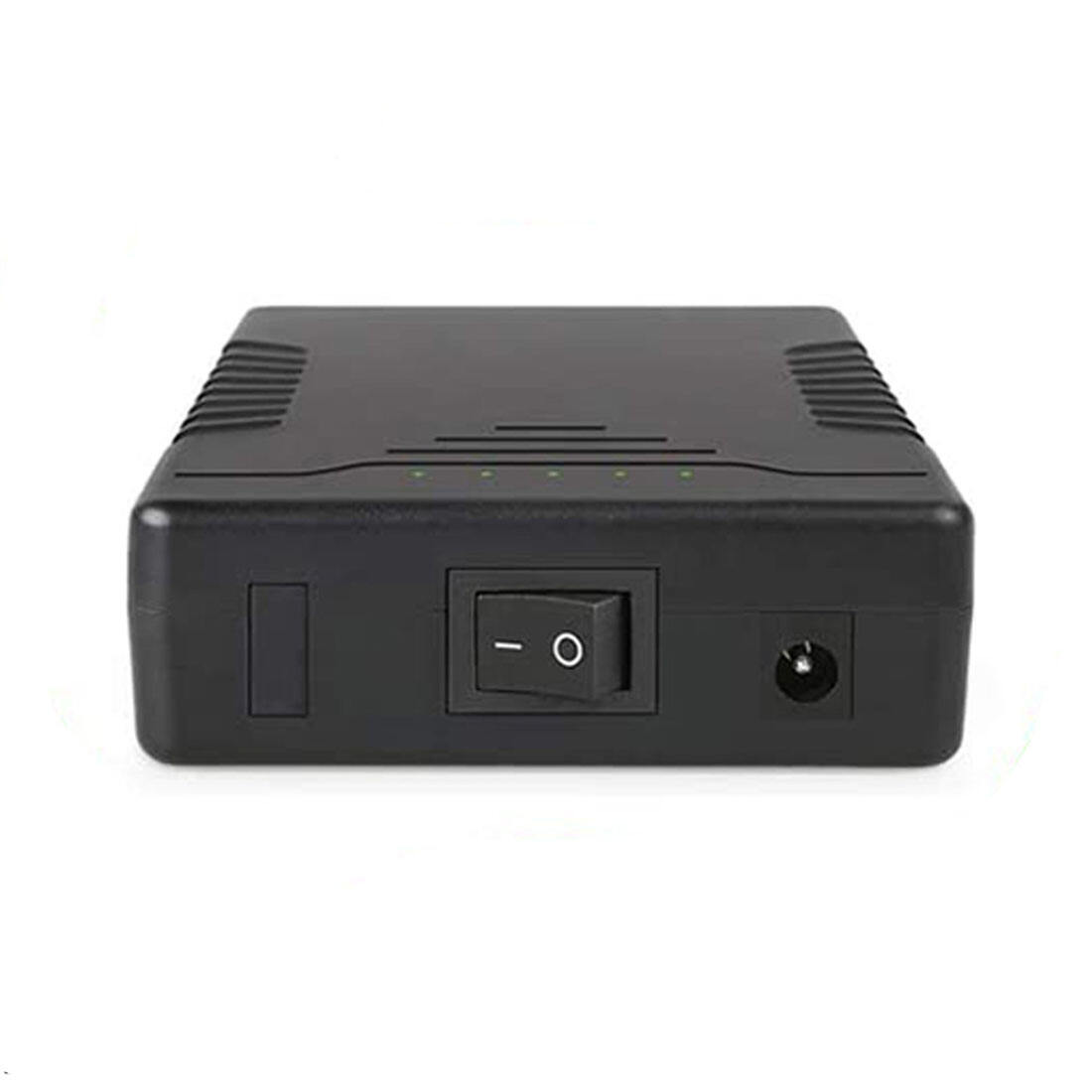

1. YABO Rechargeable 6000mAh 12V/5V DC YB1206000 Lithium ion battery pack
The YABO YB1206000 Lithium-ion Battery Pack is a powerful and reliable portable power solution designed to support a wide range of 12V and 5V electronic devices. With its upgraded 6000mAh capacity, dual-output system, and advanced protection circuitry, this battery pack delivers both endurance and stability. Whether you are powering LED lighting projects, surveillance equipment, communication devices, or handheld electronics, the YB1206000 is engineered to ensure long-lasting performance in both indoor and outdoor environments.
2. High-Capacity 6000mAh Lithium Power for Extended Usage
Engineered with premium 18650 lithium-ion cells, this battery pack offers a robust 6000mAh capacity—doubling the runtime compared to standard 3000mAh portable batteries. The optimized internal configuration supports a steady discharge rate, delivering constant voltage for hours of continuous use. This makes it ideal for applications such as security cameras, LED strip lights, routers, portable monitors, and other devices that require dependable long-term operation.
This DC dual-output design broadens its compatibility and allows you to simultaneously support low-voltage tools and consumer electronics. From powering surveillance systems in remote areas to charging mobile devices during travel, the YB1206000 is versatile enough to handle diverse scenarios without needing separate power sources.

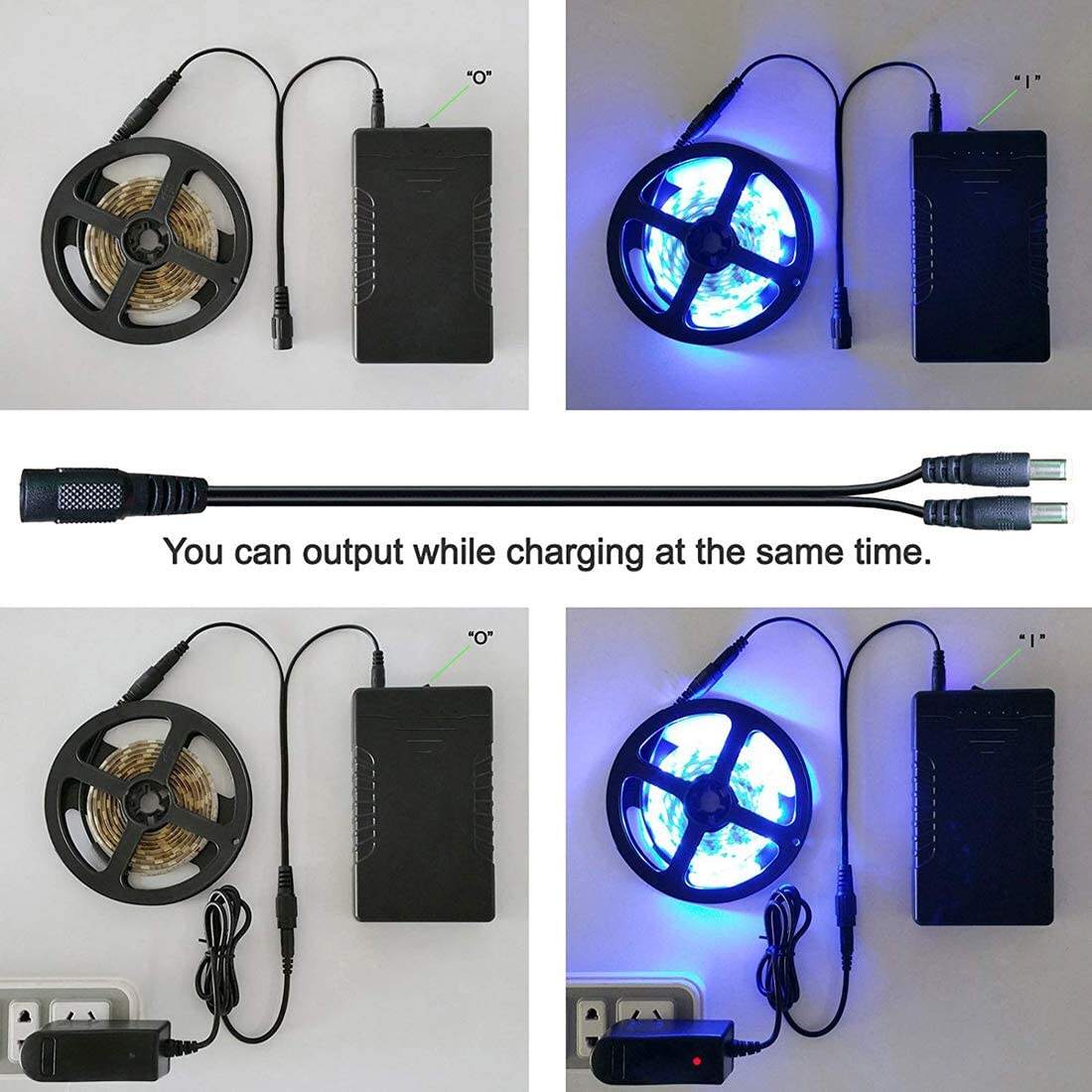

3. Supports Simultaneous Charging and Power Output
A practical highlight of this battery pack is its ability to output power while charging at the same time. This passthrough capability enables uninterrupted operation for devices such as LED strip installations, continuous camera monitoring, and communication equipment. For situations where consistent power flow is critical, this feature ensures your connected electronics remain active even while the battery itself is replenishing energy.

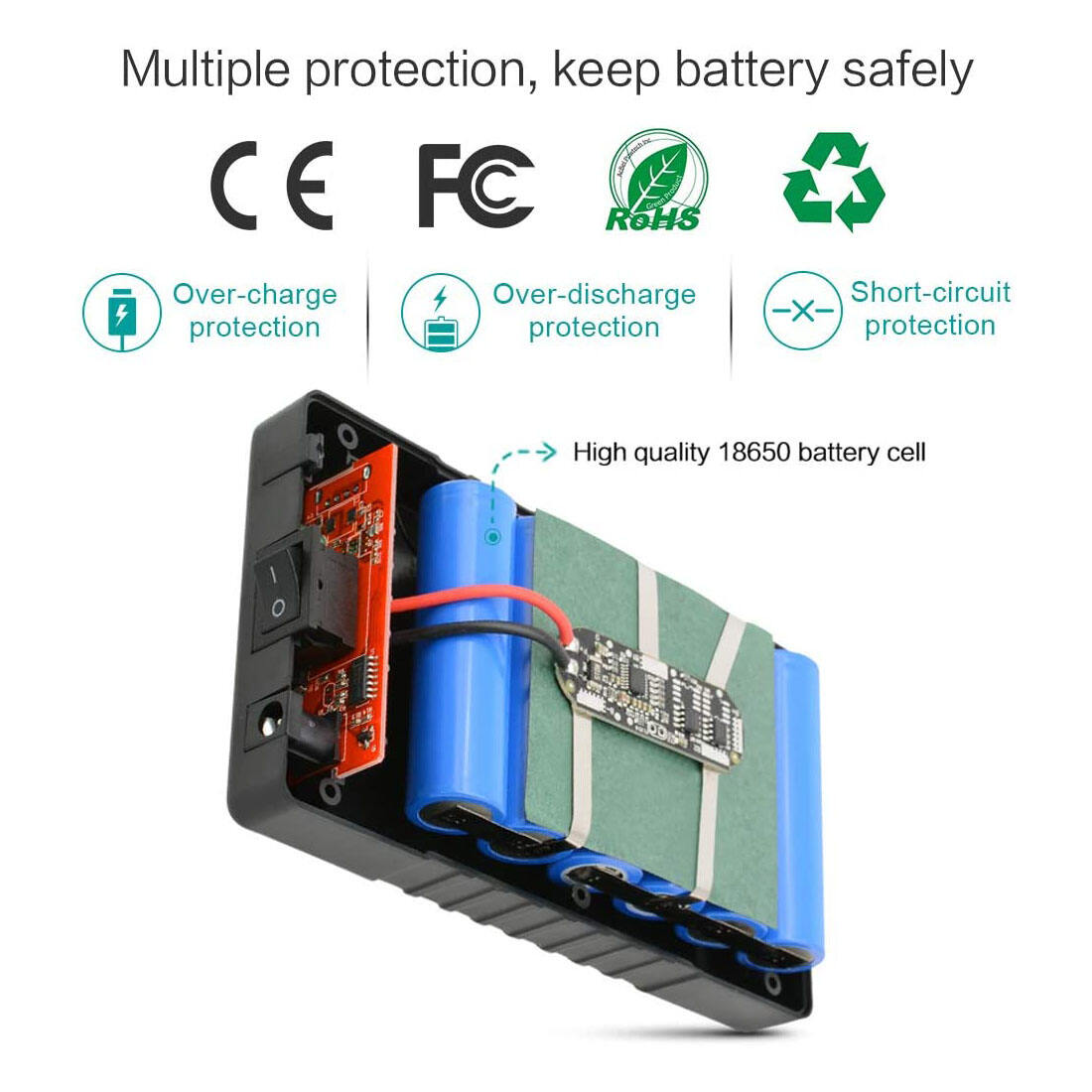

4. Advanced Safety Protection for Peace of Mind
The YB1206000 includes an integrated smart protection board that safeguards the battery and your devices from:
Backed by CE, FCC, and RoHS certifications, the battery pack adheres to international safety standards. High-quality cell balancing and precise circuit design help extend the overall life span of the battery while maintaining stable operation throughout every cycle.

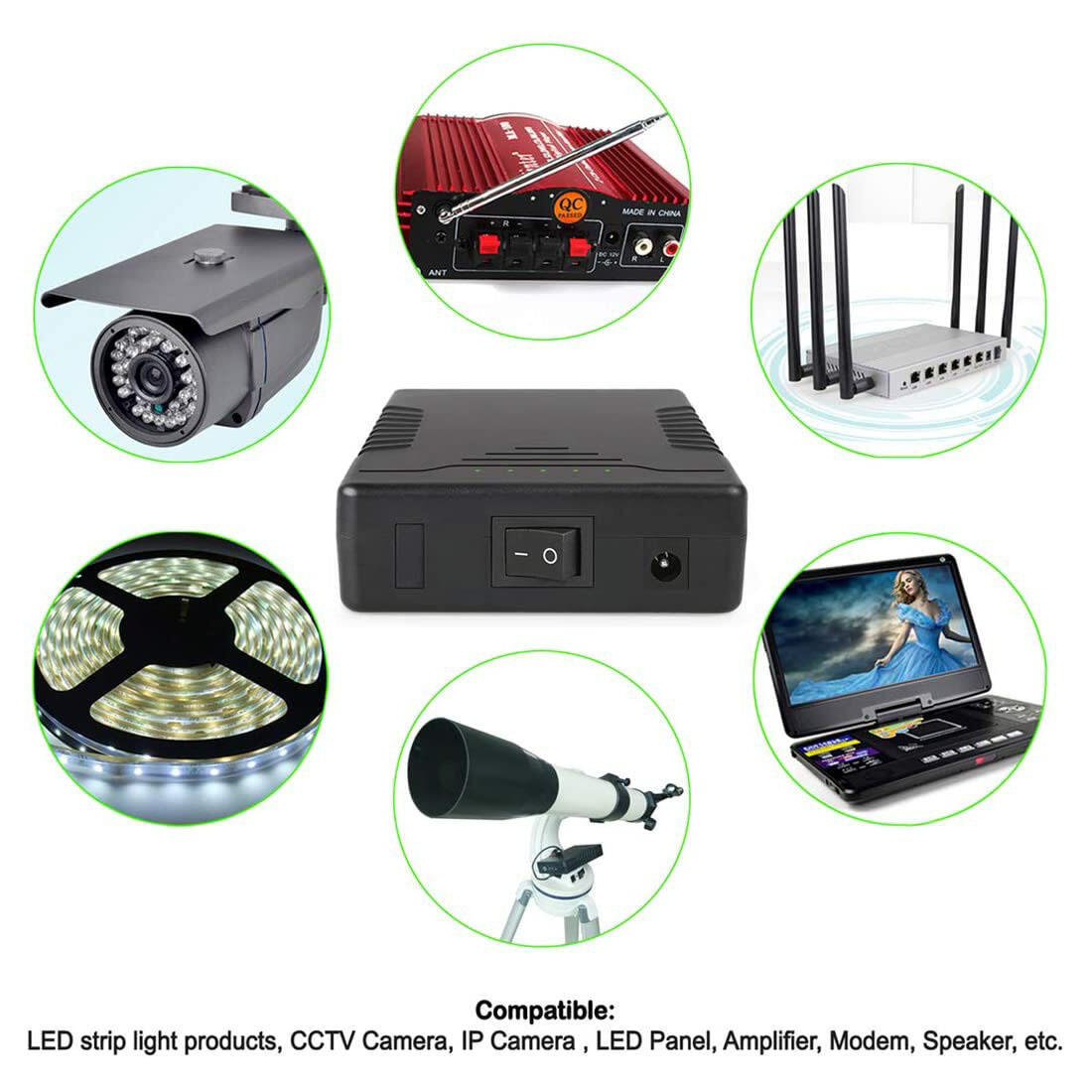

5. Wide Compatibility for Home, Professional, and Outdoor Applications
This 12V/5V battery pack is compatible with numerous devices, such as:
Its adaptability makes it a valuable tool for DIY lighting projects, camping setups, security installations, broadcast environments, and everyday portable power needs

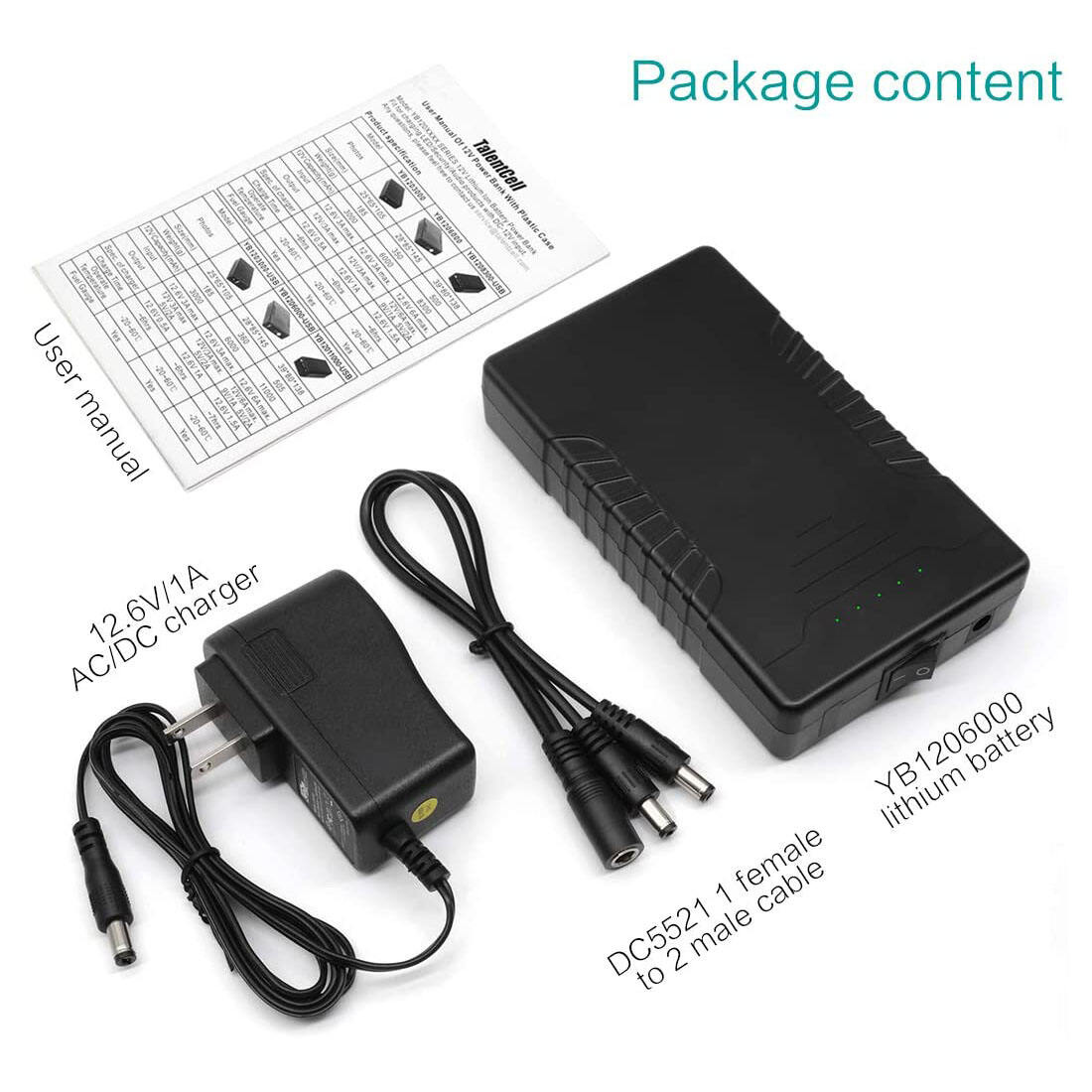

6. Package content
7. Notes
8. A Dependable and Energy-Efficient Power Solution
Designed for repeated, long-term use, the YABO YB1206000 offers an eco-friendly alternative to disposable batteries. With its optimized efficiency, enhanced protection system, and large-capacity lithium cells, it provides reliable power wherever and whenever you need it.
