YABO YB1208300-USB 12V 8300mAh Lithium ion Battery Pack DC 12/9V and 5V USB Multiple Output 99.9Wh Portable Power Bank
Features
- High-capacity 11.1V 9Ah (99.9Wh) multi-function lithium-ion battery pack with three output ports: 12V (12.6V~9.0V, 6A Max), 9V/1A (DC5525), and a 5V USB (2A Max). DC5521 port polarity is Inner Positive(+), Outer Negative(-).
- Smart multi-LED indicator with multiple LEDs for clear battery percentage display.
- Wide compatibility: powers 12V/11.1V devices (LED strips, CCTV/IP cameras, essential oil diffusers, amplifiers, modems, Echo Show 8) and 5V USB devices (smartphones). Note: Package does not include USB cable.
- 9V DC output is suitable for devices like guitar multi-effects pedals. Critical Note: A reversed polarity cable is required for most guitar pedals, as their input is typically center-negative. This cable is not included.
- Built-in comprehensive protection against overcharge, over-discharge, and short circuits.
- Important Charging Note: Ensure the battery's physical switch is turned ON (to "-" position) for charging to initiate. Compatible with 12.6V AC/DC wall chargers.
- Overview
- Recommended Products

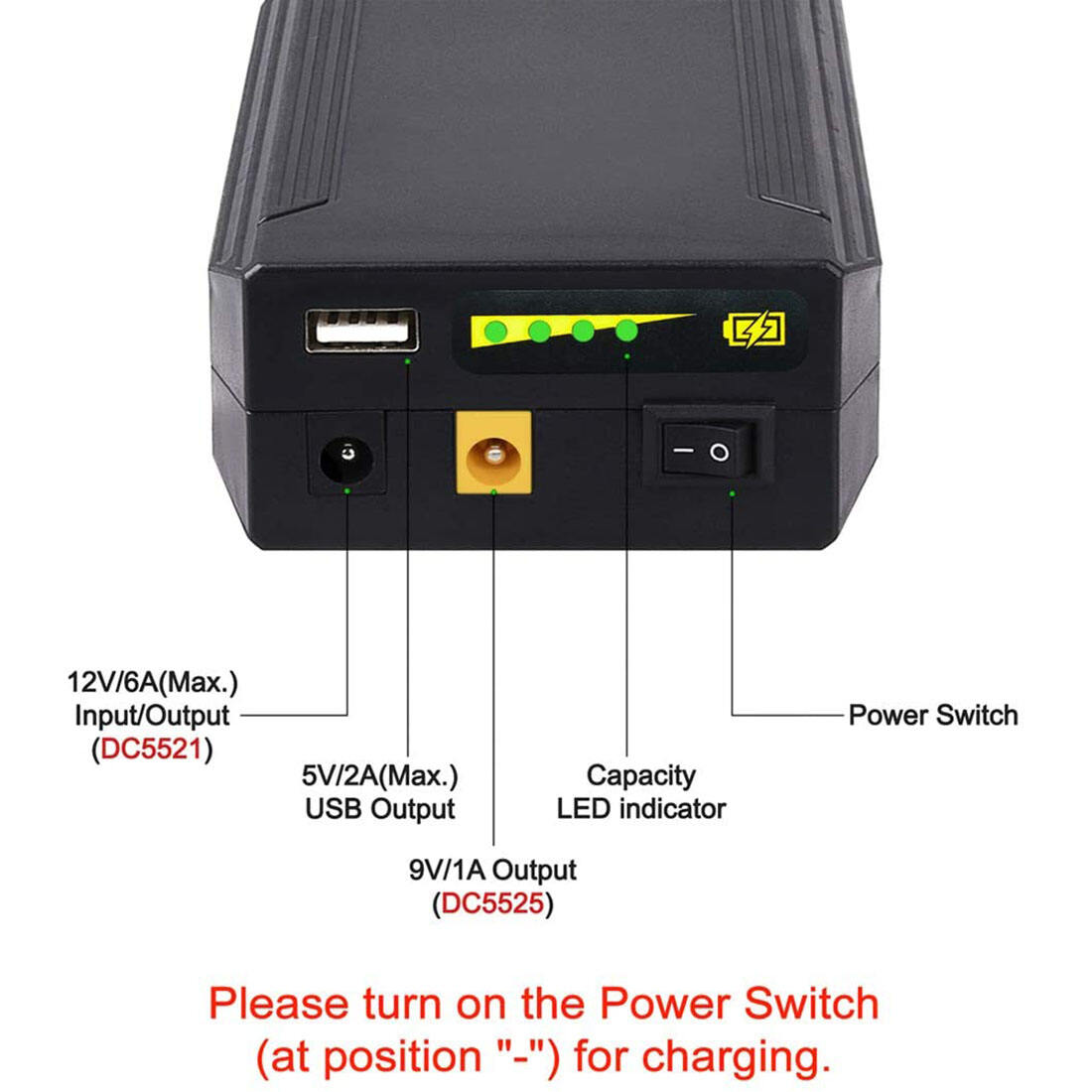

- 12V DC port (up to 6A max / DC5521)
- 9V output (DC5525)
- 5V USB output (up to 2A)
- Over-charging
- Excessive discharge
- Short-circuit conditions
- Irregular current flow
- LED strip lights and LED bulbs
- IP/CCTV cameras and surveillance systems
- Portable DVD players and multimedia screens
- Wireless routers, modems, and network devices
- Amplifiers, radio transmitters, and audio gear
- Smartphones, tablets, and USB electronics
- 1 x DC 12V Rechargeable Li-ion Battery.
- 1 x DC5525 male to DC5521 male power cable.
- 1 x DC5521 1 female to 2 male power splitter cable.
- 1 x 12.6V/1.5A AC/DC charger for battery.
- 1 x User manual
- Do not use the power bank in places with high humidity or where it may be exposed to wet.
- Do not modify or disassemble the power bank.
- Do not throw the power bank into fire or water.
- Do not place the power bank during charging on flammbable materials such as in the bed or carpets.
- No long-term placement in a low voltage state. The electricity charge to more than 50% of storage, can be stored for more than 6 months, but in order to extend the service life, it's suggested charge every three months.
Specification
| Place of Origin | Guangdong, China |
| Brand Name | TalentCell/YABO |
| Model Number | YB1208300-USB |
| Type | Li-ion battery with PCM |
| Nominal voltage | 12V |
| Typical capacity | 8300 mAh |
| Input | 12.6V/2A |
| Output | 12V (voltage range is 12.6-9V) /6A Max. 9V/1A. 5V/2A Max |
| Max continuous charge/discharge current | 3A(adjustable) |
| Connectors | 5.5*2.1mm DC jack+5.5*2.1mm DC plug |
| Protection | 12VPCM,over-charge/discharge protection, over-heat protection |
| Recharge cycle | More than 500 times |
| LED Indicator | Available |
| ON/OFF Switch | Available |
| Key word | 12v battery with charger |
| Standard Charge Time | Around 5H |
| Dimension | 39*80*138mm |
| Weight(approximate) | 500g |
| Operating temperature | -20 °C to 60 °C |
| Charge temperature | -0 °C to 45 °C |
| Storage temperature | -20 °C to 45 °C |
| Operating humidity | 5% to 90%,non-condensing |
| Application | Led Strip Light Products, CCTV Camera, IP Camera , Led Panel, Amplifier, Modem,Car DVR, Speaker, Mobile Phone |
1. YABO Rechargeable 8300mAh DC 12V/5V USB DC YB1208300-USB Lithium ion battery pack
The YABO YB1208300-USB Lithium-ion Battery Pack is engineered to supply dependable portable energy for a wide spectrum of electronics. Featuring an expanded 8300mAh capacity, multiple output ports, and a robust safety management system, this power module is designed for users who require a strong, versatile, and long-lasting power source. Ideal for LED lighting strips, CCTV/IP cameras, routers, wireless transmitters, entertainment devices, and 5V USB gadgets, it brings sustained power wherever conventional outlets are not available.
2. YABO Rechargeable 8300mAh DC 12V/5V USB DC YB1208300-USB Lithium ion battery pack
Built with high-efficiency 18650 lithium-ion cells, the YB1208300-USB delivers a significantly larger energy reserve compared to standard portable batteries. This enhanced capacity helps maintain continuous operation for extended sessions—whether you’re running lighting installations, powering network equipment, or supplying energy to multimedia devices. The battery’s optimized discharge design ensures reliable voltage stability, preventing dips or interruptions that could compromise sensitive electronics.
3. Multi-Output Design to Support a Variety of Devices
This battery pack integrates several outputs to expand compatibility:
With these interfaces, the YB1208300-USB can energize several device categories—from surveillance systems and LED modules to communication units, portable screens, routers, and handheld electronics. The USB port conveniently charges mobile phones, tablets, and other USB-powered accessories, making it an adaptable solution for both home and professional use.
4. Supports Charging and Power Delivery at the Same Time
This model is designed with pass-through capability, allowing you to supply power to your devices even while the battery is being charged. This feature is particularly valuable for uninterrupted tasks like surveillance monitoring, lighting setups, and installations that must remain operational around the clock. Users who rely on consistent output can benefit from this seamless power continuity.
5. Comprehensive Protection System for Safe Operation
The YB1208300-USB incorporates an advanced protective circuit that guards against:
These integrated safeguards help maintain battery health and protect connected equipment from electrical fluctuations. The pack also features a clear LED indicator array that displays remaining capacity, enabling users to monitor usage at a glance.
6. Ideal for Broad Applications: Home, Professional, and Outdoor Use
With its combination of 12V, 9V, and 5V outputs, this battery pack is compatible with numerous devices, including:
This wide-ranging adaptability makes it a valuable tool for hobbyists, technicians, DIY lighting projects, field installations, travel setups, and emergency back-up energy requirements.
7. Package content
8. Notes
9. Reliable Power, Expanded Capacity, and Enhanced Convenience
The YABO YB1208300-USB offers a strong blend of endurance, versatility, and safety. With its elevated 8300mAh capacity, multiple voltage outputs, and intelligent circuitry, it stands out as a dependable portable power resource tailored for modern electronics.
